| Citation: |
Jianping Liu, Canchao Yang, Jiangping Yu, Haitao Wang, Wei Liang. 2019: Egg recognition in Cinereous Tits (Parus cinereus): eggshell spots matter. Avian Research, 10(1): 37. DOI: 10.1186/s40657-019-0178-1
|
Brood parasitic birds such as cuckoos (Cuculus spp.) can reduce their host's reproductive success. Such selection pressure on the hosts has driven the evolution of defense behaviors such as egg rejection against cuckoo parasitism. Studies have shown that Cinereous Tits (Parus cinereus) in China have a good ability for recognizing foreign eggs. However,it is unclear whether egg spots play a role in egg recognition. The aims of our study were to investigate the egg recognition ability of two Cinereous Tit populations in China and to explore the role of spots in egg recognition.
To test the effect of eggshell spots on egg recognition,pure white eggs of the White-rumped Munia (Lonchura striata) and eggs of White-rumped Munia painted with red brown spots were used to simulate experimental parasitism.

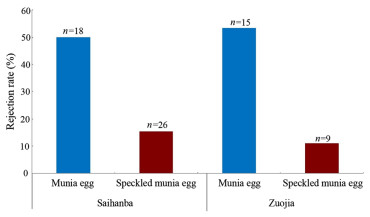

Egg experiments showed that Cinereous Tits rejected 51.5% of pure white eggs of the White-rumped Munia,but only 14.3% of spotted eggs of the White-rumped Munia. There was a significant difference in egg recognition and rejection rate between the two egg types.
We conclude that eggshell spots on Cinereous Tit eggs had a signaling function and may be essential to tits for recognizing and rejecting parasitic eggs.
Understanding how and why species richness varies over space and time is a major endeavor in ecology. One of the best documented patterns in community ecology is that species richness increases with area sampled, or the species–area relationship (Williamson 1988; Durrett and Levin 1996). Ecological theory provided three explanations for the increase of species richness with habitat area. The habitat heterogeneity hypothesis assumed that large areas tended to contain a greater diversity of environmental conditions, and thereby, supported more species (Connor and McCoy 1979). The sampling hypothesis assumed that the more species found in large areas was caused by a greater sampling effort in these areas (Rosenzweig 1995). In addition, MacArthur and Wilson (1967) proposed the outstanding equilibrium theory of island biogeography, predicted that species richness in island relied on the dynamic equilibrium of colonization and extinction processes, and species richness should increase with area size and decrease with distance from source pool. Increasing island size affected species richness primarily through increase in niche variety and population size, while isolation decreased species richness by reducing the number of potential colonists dispersing into the island (MacArthur and Wilson 1967; Rosenzweig 1995).
Since being proposed, the equilibrium theory of island biogeography had been applied to explain patterns of species richness observed not only for real islands (Economo et al. 2016), but also for such habitats as isolated forests (Ross et al. 2002; Rybicki and Hanski 2013), mountain tops (Frey et al. 2007), weed lots (Crowe 1979), and small artificial islands (Rejmánek and Rejmánková 2002). A remarkable point in these studies was that researchers usually assumed that all niches on islands had been occupied and maximum species richness had being reached (Bush and Whittaker 1991; Hubbell 1997). This assumption was not verified in all systems. Patch availability in fragmented landscapes or insular islands could vary as a consequence of time since patch or island formation (Valente et al. 2014). In such circumstances, the successful colonization by new species also depended on another factor in addition to area and isolation: the patch or island age (Horsák et al. 2012). Currently, investigations on the role of habitat age has been mainly limited to oceanic archipelagos across evolutionary time scales (Badano et al. 2005; Kreft et al. 2008; Valente et al. 2014). Few previous studies have investigated patchy inland systems (Krauss et al. 2009), which have been limited to short time scales.
Human disturbance is also an important ecological factor affecting species richness in natural environments (Fox and Fox 2000; Hiddink et al. 2006; Yuan et al. 2014). Disturbance can be considered as events that promote alteration in system structure, change species competition and resource availability (Sousa 1984). Increased levels of disturbance have been found producing decreased species richness in mammals and seabed benthic biomass (Fox and Fox 2000; Hiddink et al. 2006). Vera and Rocha (2006) also showed that the highest species diversity occurred in habitats with intermediate levels of disturbance frequency and intensity. Moreover, the effect of human disturbance on species richness can occur independently or along with the effects of spatial heterogeneity and patchiness (Tittensor et al. 2007). More studies are needed to simultaneously test the effects of patch area, age, isolation, and disturbance.
In this study, we studied the summer waterbird species–area relationship from 38 post-mining subsidence lakes in Huainan and Fuyang, Anhui province, China. These lakes had transformed from farms and villages through high groundwater influx after ground sinking caused by large amount deep coal mining from 1980s until now. These lakes, as ecosystems with well-circumscribed boundaries, were an aquatic equivalent to oceanic islands (Wagner et al. 2014), and thus gave us a good opportunity to test the area and isolation effects on species richness, and also the influences of lake age on species richness. Moreover, located in the most inhabited areas in China, these lakes were under intense human disturbance (i.e. aquaculture activity). So we also estimated the effects of different levels of aquaculture activities on species richness. In addition, we also tested the effect of lake state (still sinking or not sinking). We predicted that: (1) species richness would increase as lake area and lake age increasing; (2) species richness would be also higher for lakes not sinking compared with lakes still sinking; (3) species richness would decrease as isolation and intensity of aquaculture activity increase.
Our study area was 38 post-mining subsidence lakes in Huainan and Fuyang, Anhui, China. These lakes, located at an area of 140 km2, 70 km from west to east (116.14°–116.87°E), and 20 km from south to north (32.69°–32.88°N), were formed because ground water and underground water flowed in the subsidence grounds after coals were mined from deep underground. This area belongs to temperate monsoon climate zone, with a mean annual temperature of 16.6 ℃ and mean annual precipitation of 932.9 mm (Wan et al. 2015). As one of the most cultivated areas in China, natural habitats (i.e., forests, grasslands) have long been transformed to farms, villages and towns. There are abundant water resources, with high groundwater level in this area. Main rivers and natural lakes include Huai River, Ying River, Ji River, Xifei River, Ni River, Cihuaixin River, Jiaogang Lake, Xifei Lake, Chengbei Lake and Ni Lake (Fig. 1).
We investigated summer waterbirds (Anseriformes, Gruiformes, Ciconiiformes, Charadriiformes and Lariformes) during May 25 to June 12, 2016. We considered each subsidence lake as a sample. To thoroughly record all waterbirds in each lake, we circled the lake by foot when its open water breadth ≥ 300 m, and walked along the long side of the lake when its open water breadth ≤ 300 m. We observed the birds using a binocular (SWAROVSKI 8.5 × 42) and a telescope (SWAROVSKI 20 × 60). We recorded all waterbird individuals occurred at the lakes.
We calculated the 38 subsidence lake area sizes (ha) using application Google Earth. And isolation was calculated as the straight line distance (m) between a subsidence lake and the nearest source pool, which was arbitrarily defined as natural lakes or rivers with width ≥ 30 m (see Fig. 1). We calculated the lake age by subtracting the year of lake formation, which was obtained from local villagers or staff of coal mining company, from year 2016. Situated at the most populated areas in China, these lakes were under various human disturbances, such as fishing, irrigation, aquaculture, agriculture activities around the lakes. Among these human activities, aquaculture was a widely existed phenomenon in all lakes and had a direct impact on lakes' ecosystems because it occurred right in the lakes compared to all other activities that occasionally happened in some sites along the lake shores. We measured the extent of aquaculture in each subsidence lake as a representation of disturbance through estimating the percent of area occupied by fishing net or net cage. We defined as "low disturbance" when aquaculture area was ≤ 25% of open water in a lake, "intermediate disturbance" when > 25% and ≤ 50%, "high disturbance" when > 50% (Additional file 1: Table S1). We also wanted to compare the waterbird differences between lakes still sinking and lakes with stable state (not sinking). We defined lakes still sinking as category "1" and lakes that did not sink in the previous year before our investigation as category "0" (Additional file 1: Table S1).
We calculated mean values of lake area, lake age, and isolation. We drew species accumulation curve to see whether our sample method was sufficient using rarefaction method in EstimateS software (Amato et al. 2013).
We tested the effects of area, isolation, disturbance, lake age and lake state on species richness using both multivariable linear regression method and model selection method. Before analysis, we tested multicollinearity between all five independent variables using Pearson correlations, and all variables were retained in the following analysis because all correlation coefficients were below 0.6 (Graham 2003). For multivariable linear regression, we included all independent variables in the regression and selected variables by stepwise method. For model selection method, we evaluated the relative support among a priori of 10 models which represented the effects of area, isolation, disturbance, lake age, lake state, and their combinations. We used Akaike's Information Criterion adjusted for small sizes (AICc) and Akaike weights (wi) to evaluate the strength of evidence among competing models (Akaike 1973; Burnham and Anderson 2002). The most parsimonious model with the smallest AICc value was considered to be the best model. The model weight (wi) was used to indicate the probability of the various models (Hosmer and Lemeshow 2000).
We log10 transformed area, species richness, and isolation + 1 m for each lake before analysis (Lomolino 2001). Regression statistics were conducted in SAS 9.1 (SAS Institute 2003, Cary, NC, USA) and two tailed alpha level was set to 0.05.
Totally we recorded 24 summer waterbird species and 1486 individuals in the 38 lakes (Additional file 2: Table S2). The rarefaction curve was an asymptotic line, which indicated that our sample effort was sufficient to count waterbird species in these lakes (Fig. 2).
The most common waterbird species were Little Grebe (Tachybaptus ruficollis, 310 individuals in 37 lakes), Common Moorhen (Gallinula chloropus, 307 individuals in 36 lakes), Black-crowned Night-Heron (Nycticorax nycticorax, 189 individuals in 24 lakes) and Whiskered Tern (Chlidonias hybrid, 175 individuals in 24 lakes). Mean lake area was 129.8 ± 26.1 ha (SE, range: 5.6–933.9 ha). Mean lake age was 11.3 ± 1.3 years (range: 2–30 years). Mean distance from subsidence lakes to natural water bodies was 1210.3 ± 211.5 m (range: 0–6230 m, Additional file 1: Table S1).
Results from multivariable regression and model selection method were consistent, which showed that area (slope = 0.164 ± 0.059, F = 8.50, p = 0.006, R2 = 0.164) had a positive effect on species richness (Tables 1, 2, Fig. 3a), disturbance (slope = − 0.109 ± 0.032, F = 6.78, p = 0.013, R2 = 0.159) and isolation (slope = − 0.042 ± 0.020, F = 4.31, p = 0.045, R2 = 0.076) had negative effects on species richness (Tables 1, 2, Fig. 3b, c). Lake age (slope = 0.003 ± 0.004, t = 0.77, p = 0.445, R2 = 0.016, Fig. 3d) and lake state (slope = 0.056 ± 0.064, t = 0.88, p = 0.384, R2 = 0.021) did not influence species richness of the lakes.
| Variable | Estimate | SE | Partial R2 | Model R2 | F | P |
| Area | 0.164 | 0.059 | 0.164 | 0.164 | 8.50 | 0.006 |
| Disturbance | -0.109 | 0.032 | 0.159 | 0.323 | 6.78 | 0.013 |
| Isolation | -0.042 | 0.020 | 0.076 | 0.399 | 4.31 | 0.045 |
DownLoad:
CSV
| Models | AIC | AICc | AAICc | wi |
| Isolation + area + disturbance | -136.0 | - 135.29 | 0.00 | 0.79 |
| Area + isolation + disturbance + state + age | -134.0 | - 132.13 | 3.17 | 0.16 |
| Disturbance | -127.2 | - 127.09 | 8.21 | 0.01 |
| Area | -127.0 | -126.89 | 8.41 | 0.01 |
| Area + isolation | -126.9 | - 126.56 | 8.74 | 0.01 |
| Age + state + disturbance | -125.1 | - 124.39 | 10.90 | 0.00 |
| Isolation | - 123.2 | - 123.09 | 12.21 | 0.00 |
| State | - 121.5 | - 121.39 | 13.91 | 0.00 |
| Age + state | - 121.7 | - 121.36 | 13.94 | 0.00 |
| Age | - 121.3 | - 121.19 | 14.11 | 0.00 |
DownLoad:
CSV
Further analysis revealed that lakes with intermediate disturbance had higher species richness than lakes under low aquaculture disturbance when area sizes below 100 ha. Lakes under lower aquaculture disturbance had a steeper slope than lakes under intermediate aquaculture disturbance (0.249 vs. 0.135), as a result, species richness of lakes under low aquaculture disturbance was higher than lakes under intermediate aquaculture disturbance when lake size exceeded 100 ha. Lakes under high disturbance were always having lower species richness in all circumstances than lakes under low and intermediate disturbances (Fig. 4).
The species–area curve is one of the best documented patterns in community ecology and also central to the theory of island biogeography (MacArthur and Wilson 1963, 1967), which assumes species richness increased with habitat patch area and connectivity. In this study, we confirmed that summer waterbird species richness was positively related with area and negatively related with isolation in 38 post-mining subsidence lakes. Moreover, we also found that human disturbance negatively influenced the existing patterns of species richness, while lake age or lake state (still sinking or not) did not affect species richness.
In consistent with our predictions, species richness increased with lake area and decreased with isolation. The increase in species richness with increasing area had been recurring reported in taxa as diverse as bacteria, plants and animals (Storch et al. 2012; Wagner et al. 2014; Economo et al. 2016). Three explanations had been proposed to account for the behind mechanisms: the sampling hypothesis (Rosenzweig 1995), the habitat heterogeneity hypothesis (Connor and Mccoy 1979) and the equilibrium theory of island biogeography (MacArthur and Wilson 1967). Our results showed that summer bird richness increased with increased lake area and decreased isolation, which supported the area per se theory. Lakes with greater area sizes might provide more niches than smaller lakes. Relatively small variance was explained by isolation in this study (R2 = 0.076). This could be attributed to the relatively shorter distances between our study lakes and natural water bodies, or a more complex connectivity (i.e. landscape structure) between lakes from birds' own perspective of view (Tischendorf and Fahrig 2000, 2001). We did not test the habitat heterogeneity and sampling effort hypothesis because of lack of data. We encourage further investigation on the effects of habitat heterogeneity as this has been found to be an important factor in determining species richness pattern in some other studies (Power 1972; Fox and Fox 2000).
Although the fact that larger areas contain more species than smaller ones is quite obvious, the shape and slope of the species–area relationship have remained largely unexplained (Storch et al. 2003). The slope of species–area relationship found in this study (0.16) was lower compared with results in most of other studies, which was usually between 0.20 and 0.40 (Connor and Mccoy 1979; Economo et al. 2016). This might be because post-mining subsidence lakes in our study area are relatively small. Many studies had concluded that slope of species–area relationship was scale dependent, with a more gentle slope (Palmer and White 1994; Scheiner 2003) and more frequent extinction probabilities in smaller systems (Simberloff 1976). Waterbirds are very mobile animal groups and species found in this study were mostly general species. These might also contribute to similar species composition, lower rates of species turnover among lakes, and thus a gentle slope of species–area relationship.
In accord with our prediction, aquaculture had a significantly negative effect on species richness. Extensive aquaculture in this study might has both direct and indirect effects on species richness. On the one hand, aquaculture activities might directly disturb waterbirds and reduce their resource utilization. On the other hand, aquaculture usually needs to build dike, thus destroy littoral aquatic plants, which indirectly decrease waterbird richness through reducing their resource availability. The effect of aquaculture might not always be detrimental to species richness. For example, Feaga (2014) investigated abundance of wintering waterbirds, seeds, and invertebrates in six production and idled aquaculture facilities and found that aquaculture impoundments produced suitable conditions for waterbirds in terms of food and habitat. In our study system, suitable habitats for most waterbirds (i.e. shallow water) were likely to be destructed as deep waters (usually more than 1 m) were preferred for fisheries. Our results also suggested the effect of aquaculture on species richness was scale dependent (Fig. 3). Species richness was always lower under high disturbance level compared with under low and intermediate disturbance levels. However, species richness was higher for lakes under intermediate disturbance than lakes under low disturbance when lake area was smaller than 100 ha. This result was in consistent with the intermediate disturbance hypothesis (Connel 1978), which assumes species number was highest under intermediate disturbance. Species richness in lakes under low disturbance exceeded intermediate disturbed lakes when lake area larger than 100 ha. This might be because that a greater diversity of habitats existed in bigger lakes compared with smaller ones.
Contrary to our prediction, we did not found lake age affect waterbird species richness. This was surprising as our study sites represented an age gradient of 30 years and secondary successional theory predicts an increase in species richness with the succession of systems (Odum 1969; Brown and Southwood 1987). Vegetation composition and structure were found to be important in affecting waterbird habitat selection and utilization (Lantz et al. 2010; Ma et al. 2010). However, aquaculture activities were likely to impede the vegetation growth and spread, and also keep them in an early successional stage, which might impede us finding a relationship between lake age and species richness in our study system. Despite aquaculture could increase resource availability for some fish eating species, such as Little Grebe and Great Crested Grebe (Podiceps cristatus), more profound negative effects might come through both destroying littoral vegetation for dike construction and incurring competition for food resources between waterbirds and fishes (Scheffer et al. 2006).
Despite the significant effects of area, aquaculture disturbance and isolation have been found in our study, relatively low explanation abilities (total R2 = 0.399) suggested variables that were not incorporated in our study might also have important influences on species richness. Habitat heterogeneity, both from the lake per se and lake connectivity, could play important roles in shaping summer waterbird communities. And the various human disturbances, such as cultivation category and extensity, traffic flow, and other unpredictable human activities, such as fishing, which frequently occurred around these lakes would also have profound effects on habitat use of summer waterbirds. We encourage a more comprehensive study to incorporate all these factors to understand waterbird species richness of these subsidence lakes in the future.
Summer waterbird species richness in 38 post-mining subsidence lakes was positively related with lake area and negatively related with isolation. Aquaculture activity had a negative effect on species richness and the effect on species richness was complicated, with the highest species richness found in intermediate disturbed lakes less than 100 ha, and low disturbed lakes above 100 ha. Lakes under high disturbance always had lowest species richness. Lake age since formation has no significant effect on species richness, which might attribute to that aquaculture activities impede lake vegetation growth and spread, and thus keep these lakes in an early successional stage.
Additional file 1: Table S1.Species richness, area size, disturbance, isolation, age, and state of the 38 subsidence lakes used in linear regressions in this manuscript
Additional file 2: Table S2.Waterbird species and numbers found at the 38 investigated post-mining subsidence lakes in Huainan and Fuyang, Anhui, China, 2016
JZ and LZ conceived the research project. JZ collected and analyzed the data. JZ and LZ wrote and approved the manuscript. Both authors read and approved the final manuscript.
We thank the anonymous local villagers who gave us a ride during our investigations.
The authors declare that they have no competing interests.
The datasets used and/or analyzed during the current study are included in the paper.
Not applicable.
The waterbird investigations comply with the current laws of China in which they were performed.
|
Davies NB. Cuckoos, cowbirds and other cheats. London: T & AD Poyser; 2000.
|
|
Davies NB. Cuckoo: cheating by nature. London: Bloomsbury; 2015.
|
|
Hauber ME. The book of eggs: A life-size guide to the eggs of six hundred of the world's bird species. Brighton: Ivy Press; 2014.
|
|
Johnsgard PA. The avian brood parasites: deception at the nest. Oxford: Oxford University Press; 1997.
|
|
Kilner RM. The evolution of egg colour and patterning in birds. Biol Rev. 2006;81:383-406.
|
|
Newton AV. A dictionary of birds. London: A & C Black; 1896.
|
|
Payne RB. The cuckoos. Oxford: Oxford University Press; 2005.
|
|
Stokke BG, Fossøy F, Røskaft E, Moksnes A. Adaptations of brood parasitic eggs. In: Soler M, editor. Avian brood parasitism: behaviour, ecology, evolution and coevolution. Cham: Springer International Publishing AG; 2017. p. 363-84.
|
|
Swynnerton CFM. Rejections by birds of eggs unlike their own: with remarks on some of the cuckoo problems. Ibis. 1918;6:127-54.
|
