Djamel Bendjoudi, Jean-François Voisin, Salaheddine Doumandji, Amel Merabet, Nassima Benyounes, Haroun Chenchouni. 2015: Rapid increase in numbers and change of land-use in two expanding Columbidae species (Columba palumbus and Streptopelia decaocto) in Algeria. Avian Research, 6(1): 18. DOI: 10.1186/s40657-015-0027-9
Citation: Djamel Bendjoudi, Jean-François Voisin, Salaheddine Doumandji, Amel Merabet, Nassima Benyounes, Haroun Chenchouni. 2015: Rapid increase in numbers and change of land-use in two expanding Columbidae species (Columba palumbus and Streptopelia decaocto) in Algeria. Avian Research, 6(1): 18. DOI: 10.1186/s40657-015-0027-9

Rapid increase in numbers and change of land-use in two expanding Columbidae species (Columba palumbus and Streptopelia decaocto) in Algeria

More Information
  • Corresponding author:

    Haroun Chenchouni. chenchouni@gmail.com

  • Received Date: 01 Oct 2014
  • Rev Recd Date: 16 Jul 2015
  • Accepted Date: 10 Sep 2015
  • Available Online: 24 Apr 2022
  • Published Date: 22 Sep 2015
  • Background

    Investigating population ecology of urban bird species, particularly the invasive and expending species, is the key for the success of urban management and planning strategies.

    Methods

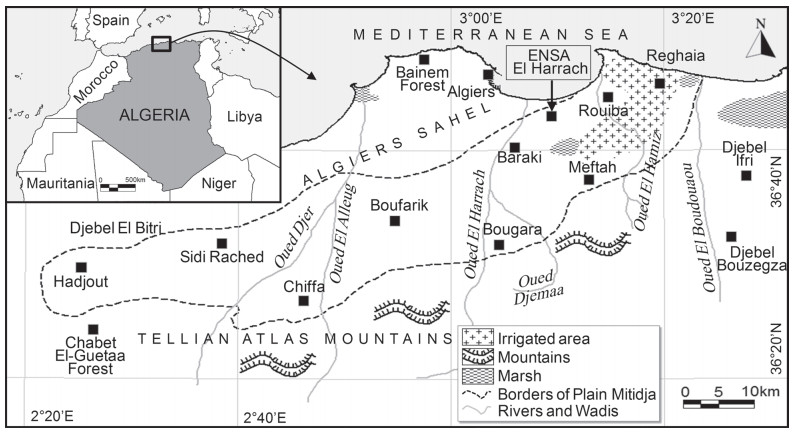

    Populations of two Columbidae species, the Woodpigeon (Columba palumbus) and the Eurasian Collared Dove (Streptopelia decaocto), were monitored from 1992 to 2010 in the Algiers Sahel, the Mitidja Plain and surrounding areas (Northern Algeria). Monitoring of species densities was performed by the mapping-plot method. The foraging flight routes of Woodpigeon and the distribution of Eurasian Collared Dove were assessed by systematic observations.

    Results

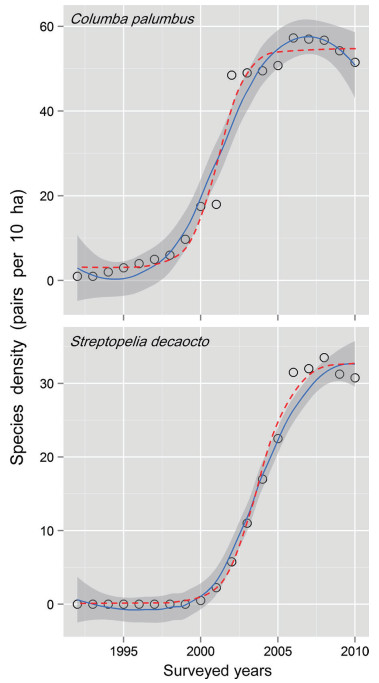

    The number of counted birds was statistically constant at first years of the survey, and then increased significantly, beginning from low numbers, their densities accelerated sharply between 2001 and 2006, then reached to an equilibrium state. The significant increase in Woodpigeon's population could be explained by the reduced hunting pressure and by species adaptation to new food resources provided by nearby agriculture. Indeed, monitoring of flight directions of the species revealed the use of agricultural landscapes and habitats, which is a good indicator explaining adaptation and trophic niche of the species. The occurrence of the Eurasian Collared Dove in Algiers began in 2000. Its density experienced a rapid increase with similar trend pattern as that of Woodpigeon. Its distributional range is confined mainly in suburban environments of the Mitidja Plain.

    Conclusion

    The modifications of habitats, urbanization increase and the lessening of hunting in the Mitidja Plain facilitated the rapid expansion of the Eurasian Collared Dove and Woodpigeon as well contributed to the increase in their numbers over time.

  • Breeding, migration, and moulting are considered the three-main energy-demanding events in the yearly cycle of birds () and usually studied separately due to their isolated occurrence (). The importance of the moult in the life cycle of birds of prey for advancing our understanding of the ecology of each species has been recently highlighted by . In several migrating species moulting leads to age-dependent migration strategies (; ) and these differences are especially pronounced among long-distance migrants. Among passerines, first-year birds migrate earlier than adults. The opposite occurs in species in which adults suspend or postpone moult until they reach their wintering grounds (; ; ; ; ). Long distance migrant raptors typically avoid moulting during migration (; ) such as in the case of Osprey (Pandion haliaaetus; ). In small raptors the time required to grow a new feather is 2-3 weeks while it is much longer in large raptors such as vulture species (). In the case of damaged feathers, raptors can replace them much faster than in the usual time of moulting (). However, there are species that do not stop moulting during long-distance movements (). For example, it has been found that Palearctic Circus sp. moult during migration and eventually slow the moulting process (). Moreover, we can find the "suspended moult" strategy which is defined as a moult interrupted temporarily and subsequently resumed (). This strategy frequently involves individuals in late breeding attempts having to interrupt their normal moult cycle in order to migrate.

    In Western Marsh Harriers (WMHs), females started moulting during incubation (May-June) while males start up to 6 weeks later (). During chicks rearing period WMH may suspend moult for better hunting efficiency while they end moulting in late October-early November (). During spring migration showed that adult WMHs perform their journey with non-active moult in their flight feathers.

    Unfortunately, moulting patterns in relation to migration strategies are poorly investigated in raptor species despite it is well known that long-distance migrant Accipitriformes need a large amount of energy to overcome barriers during migration where they must use flapping powered flight (). The aim of this work is to confirm and to describe the active moult of WMH's flight feathers during the spring migration across the Strait of Messina.

    From August 13th to September 30th 2016 we collected data on moulting Western Marsh Harriers migrating along the Mid-Mediterranean Flyway (Fig. 1). Fieldwork was carried out on the continental side of the Strait of Messina, a hotspot for soaring birds (; ; ). We used two watch points both located on the Aspromonte Plains, a flat highland a few kilometers inland of the Strait of Messina, on the western side of the Apennines ridge. The highland lies between 1000 and 1200 m a.s.l. with a landscape altered by human agricultural activity. One of the watch points was located in the middle of the highland while the other one was located close the mountain slopes. Observations were carried out daily from sunrise to sunset.

    Figure 1. Geographical context of the study area, the Strait of Messina (SM). The asterisk indicates the Aspromonte plain
    Figure  1.  Geographical context of the study area, the Strait of Messina (SM). The asterisk indicates the Aspromonte plain

    We used high-quality photos taken in the field from which moult patterns can be inferred (; ; ). Digital cameras (i.e. Panasonic Lumix DMC-FZ72, FZ300) were equipped with lens with 8-60 × magnification. Photography data collection was supported by visual observations that were made using binoculars (i.e. Leica 10 × 42) and scopes (i.e. Swarowski 20-60 ×) by at least two experienced birders operating simultaneously. Visual observations were used only to detect if birds were moulting or not. Pictures and data were compared daily with those from the other watch points to delete possible double-counting of the same individuals according to the time and location of the birds passage as well as the individual moult features and sex. Only birds observed or photographed at closer range (< 100 m) were considered in the analysis, providing a random sample of the whole number of WMHs detected. We determined: (1) if harriers were moulting or not; (2) for a subsample of individuals, we were able to describe the moulting stage according to . In this last subset of data, we recorded the number of primaries that the bird was moulting, if any. Therefore, we assigned a value from 1 to 10 according to the primary feathers moulting pattern of the species, being 1 = P1, 2 = P2 and so on ().

    We used two different analyses. A Binary Logistic Regression Analysis (hereafter BLRA) (logit link function) (; ; ) was used to test the factors influencing numbers of moulting individuals. For this we compared moulting and non-moulting birds (using both, data from visual observations and from pictures inspection), that in the BLRA was our dependent binary variable (1/0). The covariates were:

    1. The Julian date calculated as the number of the day from the beginning of the year (January 1st being day number 1).

    2. The squared Julian date was used as covariate as well to account for non-linear effects of the Julian date on bird migration (; ; ; ).

    3. Sex of the bird (male, female).

    4. Age (2nd CY, adult).

    5. Watch point.

    We tested the fitness of the model by means of the area under the curve of the Receiver Operating Characteristic (ROC) plot (; ; ). This area provides a measure of discrimination ability, varying from 0.5 for a model with a discrimination ability no better than random, to 1.0 for a model with perfect discriminatory ability.

    To verify the variation of moulting stage among the photographed individuals, we used a Linear Model (LM) using the number of moulting primaries as dependent variable (from 1 to 10). As covariates we used the same of the BLRA with the exclusion of the watchpoint. We tested the fitness of the model checking the R2 value.

    For both, LM and BLRA, we made a stepwise model selection comparing the different models by the AICc value and choosing the ones with the lowest value. All statistical analyses were made with R open source software ().

    We observed a total of 3522 Western Marsh Harriers between the 13th August to 30th September. Among those, the individuals that were aged as adult birds were 1125 while juveniles were 413. From adult birds, 802 were positively identified as males and 323 as females, of which 19 were 2nd CY birds. Other 673 individuals were recorded under the category female/juvenile type. The remaining 1311 observed WMHs were undetermined. We took close pictures that allowed us to identify clear signs of moult from 107 individuals, while other 114 harriers did not show moult signs. From all these WMHs we obtained active moult schemes extracted from photos of 35 WMHs, 21 males and 14 females respectively. Another seven WMHs that recently suspended the moult of their primaries were confirmed but not included in the analyses because they weren't active moulting birds. We did not record any individuals with old feathers missing or with new pin feathers, neither individuals with new feathers at one-third of its whole length. The timing of the primary feathers moult varies slightly between males and females (Fig. 2). Females showed a more advanced moult stage on average than males, with 100% of the females with the inner 3rd primary already moulted unlike the 79% of the males. Similarly, different proportions between sexes have been recorded for the 4th, 5th, 6th and 7th primaries. However, the three outermost primaries, the 8th, the 9th and the 10th, remained unmoulted in both sexes (Fig. 3).

    Figure 2. Proportions of moulting WMH during autumn migration at the Strait of Messina. Moulting (Yes = light grey) and non-moulting (No = dark grey) birds across the season (11th August-30th September). (a) Males, (b) Females
    Figure  2.  Proportions of moulting WMH during autumn migration at the Strait of Messina. Moulting (Yes = light grey) and non-moulting (No = dark grey) birds across the season (11th August-30th September). (a) Males, (b) Females
    Figure 3. Proportion of moulted primaries for male and female WMHs recorded in the present study (SS = secondary feathers)
    Figure  3.  Proportion of moulted primaries for male and female WMHs recorded in the present study (SS = secondary feathers)

    The results of both, the BLRA and the LM (Table 1), indicate that the Julian date is the only relevant variable explaining the passage of moulting harriers in the study area, with higher numbers observed early in the season and with a more advanced moult later in the season (Table 1). Females were observed with more moulted primaries than males (Fig. 4). Moreover, 2nd CY harriers have a more advanced moult comparing to adults (Table 1).

    Table  1.  Model selection for the BLRA and for the LM investigating factors influencing moult of migrating Western Marsh Harriers
    Model AICc ΔAICcAUC/R2
    BLRA Julian date (β = - 0.04 ± 0.01, p < 0.01) 288.6 0 0.61
    Julian date, Julian date squared, Sex, Age, Watchpoint293.650.64
    LM Julian date (β = 0.1 ± 0.03, p < 0.05), Sex (Males, β = - 1 ± 0.4, p < 0.05), Age (Adults, β = - 1.7 ± 0.8, p < 0.05) 22.39 0 0.48
    Julian date, Julian date squared, Sex, Age24.121.730.49
    Parameters estimates ± standard errors are shown together with p values for the best models. The best models are shown in italics, below the full models are reported
     | Show Table
    DownLoad: CSV
    Figure 4. Moult of male (a) and female (b) Western Marsh Harriers in relation to Julian date
    Figure  4.  Moult of male (a) and female (b) Western Marsh Harriers in relation to Julian date

    Our results suggest that adult WMHs start their autumn migration once the last primary to be moulted (maximum until the P7) was already expelled, and the previous primaries are already growing. Growing stages of those feathers could be visible during the lapse of migration that it takes for feathers to grow until their complete development. Therefore, during post-breeding migration only growing new flight feathers and moulted new ones were recorded, but no lacking feathers. We detected the presence of primary feathers unmoulted, already moulted, and growing at medium/late moulting stages. Not a single individual showed the lack of a primary or an immediate growing stage such as 1 or 2 (). This indicates that replacing the next old feathers in the sequence is unlikely to occur during migration but in the winter quarters.

    The lack of feathers might imply a less efficient flight with a disproportional increase of the energy required for flapping (). Therefore, it is possible that adult WMHs which belong to the same sex group with a higher number of primary feathers involved in their moult should come from breeding grounds farther away than individuals showing a less extended ongoing moult. Moreover, our data suggests that there is a relationship between the extension and timing of the suspended moult and the timing of the migration itself with a difference between males and females. We found adult females showed an averaged more extended moult than the adult males and a later timing of migration as well (; ). This confirms that adult females start moulting in the breeding season before the males. However, they suspend that moult later on average as well (; ).

    If we considered "active moult" as the lapse of time during which a bird replaces feathers rather than the time spent by a bird on feathers growth, we might consider that active moult of WMHs ends at the breeding ground immediately after shedding the last primary to be replaced and just before starting the post-breeding migration. So, during migration, only growing feathers take place, being the extension of the suspended moult already defined at the breeding ground just before leaving. This strategy might be evolved to minimize the effect of moulting during migration. Such movements are energetically demanding and harriers are known to be raptors that largely use powered-flapping flight over long distances (; , ; , ).

    JR made the study design, collected data on moulting, prepared the dataset and wrote the first draft of the manuscript. MP coordinated the fieldwork, made the analysis and wrote the paper. Both authors read and approved the final manuscript.

    We thank Giacomo Dell'Omo and Ornis italica for his support during the fieldwork. We are grateful to all the people who collected data at the Strait of Messina in autumn 2016 and in particular: Alberto Pastorino, Michele Cento, Gianpasquale Chiatante, Nicolantonio Agostini, Martina Zambon, Stiven Kocijančič, Giuseppe Cicero. We would also like to acknowledge Kylynn Clare for her contributions to the editing of this paper. We wish to thank MEDRAPTORS (www.raptormigration.org), a network of ornithologists involved in the research and the protection of migrating birds of prey through specific projects and observation camps.

    The authors declare that they have no competing interests.

    The datasets used in the present study are available from the corresponding author on request.

    Not applicable.

    This study did not imply manipulation of birds.

  • Marsh DM, Trenham PC. Current trends in plant and animal population monitoring. Conserv Biol. 2008;22:647–55.
    Edman T, Angelstam P, Mikusinski G, Roberge JM, Sikora A. Spatial planning for biodiversity conservation: assessment of forest landscapes' conservation value using umbrella species requirements in Poland. Landscape Urban Plan. 2011;102:16–23.
    Bendjoudi D, Chenchouni H, Doumandji S, Voisin J-F. Bird diversity in Plain Mitidja (North Algeria) with emphasis on dynamics of invasive and expanding species. Acrocephalus. 2013;34:13–26.
    Huxel GR. Rapid displacement of native species by invasive species: effects of hybridization. Biol Conserv. 1999;89:143–52.
    Pimentel D, Rodolfo Zuniga R, Morrison D. Update on the environmental and economic costs associated with alien-invasive species in the United States. Ecol Econ. 2005;52:273–88.
    Strubbe D, Shwartz A, Chiron F. Concerns regarding the scientific evidence informing impact risk assessment and management recommendations for invasive birds. Biol Conserv. 2011;144:2112–8.
    Cronk QCB, Fuller JL. Plant invaders: the threat to natural ecosystems. London: Chapman & Hall; 1995.
    Clavero M, Brotons B, Pons P, Sol D. Prominent role of invasive species in avian biodiversity loss. Biol Conserv. 2009;142:2043–9.
    Dures SG, Cumming GS. The confounding influence of homogenising invasive species in a globally endangered and largely urban biome: does habitat quality dominate avian biodiversity? Biol Conserv. 2010;143:768–77.
    Kumschick S, Nentwig W. Some alien birds have as severe an impact as the most effectual alien mammals in Europe. Biol Conserv. 2010;143:2757–62.
    Van Rensburg BJ, Peacock DS, Robertson MP. Biotic homogenization and alien bird species along an urban gradient in South Africa. Landscape Urban Plan. 2009;92:233–41.
    Anderies JM, Katti M, Shochat E. Living in the city: resource availability, predation, and bird population dynamics in urban areas. J Theor Biol. 2007;247:36–49.
    Patón D, Romero F, Cuenca J, Escudero JC. Tolerance to noise in 91 bird species from 27 urban gardens of Iberian Peninsula. Landscape Urban Plan. 2012;104:1–8.
    Reis E, López-Iborra GM, Pinheiro RT. Changes in bird species richness through different levels of urbanization: implications for biodiversity conservation and garden design in Central Brazil. Landscape Urban Plan. 2012;107:31–42.
    Møller AP. Successful city dwellers: a comparative study of the ecological characteristics of urban birds in the Western Palearctic. Oecologia. 2009;159:849–58.
    Bendjoudi D. Etude de l'Avifaune de la Mitidja. PhD Thesis National Agronomical Institute, El Harrach; 2008.
    Benyacoub S. La Tourterelle turque Streptopelia decaocto en Algérie. Alauda. 1998;66:251–3.
    Moali A, Isenmann P. La Tourterelle turque Streptopelia decaocto nicheuse en 2007 à Tamanrasset (Sahara central, Algérie) et son expansion au Sahara. Alauda. 2007;75:247–8.
    Moali A, Moali-Grine N, Fellous A, Isenmann P. Expansion spatiale de la Tourterelle turque Streptopelia decaocto et présence dans les parcs urbains du Pigeon ramier Columba palumbus en Algérie. Alauda. 2003;71:371–4.
    Boukhemza-Zemmouri N, Belhamra M, Boukhemza M, Doumandji S, Voisin J-F. Biologie de reproduction de la Tourterelle des bois Streptopelia turtur arenicola dans le Nord de l'Algérie. Alauda. 2008;76:207–22.
    Blondel J. Méthodes de dénombrement des populations d'oiseaux. In: Lamotte M, Bourliere F, editors. Problèmes d'Écologie: L'échantillonnage des Peuplements Animaux des Milieux Terrestres. Paris: Masson; 1969. p. 95–151.
    Ochando B. Méthodes d'inventaires et de dénombrements d'oiseaux en milieu forestier. Application à l'Algérie. Annals of INA El Harrach. 1988;12:47–59.
    Paine CET, Marthews TR, Vogt DR, Purves D, Rees M, Hector A, Turnbull LA. How to fit nonlinear plant growth models and calculate growth rates: an update for ecologists. Methods Ecol Evol. 2012;3:245–56.
    R Core Team. R: a language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. 2015. .
    Crawley MJ. The R book. 2nd ed. Chichester: Wiley; 2013. p. 715–39.
    Chenchouni H, Si Bachir A, AlRashidi M. Trophic niche and feeding strategy of the White Stork (Ciconia ciconia) during different phases of the breeding season. Avian Biol Res. 2015;8:1–13.
    Baptista LF, Trail PW, Morblit HM. Family Columbidae (Pigeons and Doves). In: Del Hoyo J, Elliott A, Sargatal A, editors. Handbook of the birds of the world, vol. 4. Barcelona: Lynx; 1997. p. 60–243.
    Saari L. Wood pigeon (Columba palumbus). In: Hagemeijer EJM, Blair MJ, editors. The EBCC atlas of european breeding birds. Their Distribution and Abundance. London: T & AD Poyser; 1997. p. 384–5.
    Yeatman L. Atlas des Oiseaux Nicheurs de France de 1970 à 1975. Paris: Ministère de la Qualité de la Vie & SEOF; 1976.
    Meddour-Sahar O, Meddour R, Derridj A. Analyse des feux de forêts en Algérie sur le temps long (1876–2007). Les notes d'analyse du CIHEAM. 2008;39:10.
    Heim De Balsac H, Mayaud N. Les oiseaux du Nord-Ouest de l'Afrique. Paris: Lechevalier; 1962.
    Guezoul O, Doumandji S, Souttou K, Baziz B, Brahmi K. Première mention sur le comportement trophique des adultes du pigeon ramier Columba palumbus Linné, 1758 et du pigeon biset Columba livia Bonnaterre, 1790 dans un milieu sub-urbain près d'El Harrach. Ornithologia Algirica. 2004;4:11–6.
    Merabet A, Bendjoudi D, Doumandji S, Baziz B. Place des columbiformes parmi les oiseaux de la Mitidja en milieux suburbains et agricoles: Emploi des E.F.P. International Conference on the Algerian Ornithology, 11–13 Nov 2006. Algeria: University of Batna; 2006.
    Gibbs D, Barnes E, Cox J. Pigeons and Doves. The Banks: Pica Press; 2001.
    Belhamra M. National Report on Hunting (Algeria). Building capacity for sustainable hunting of migratory birds in Mediterranean third countries. Project Ref: LIFE 04 TCY/INT/000054. 2005. .
    Cherkaoui SI, Dakki M, Selmi S, Rguibi Idrissi H, Thevenot M. Les oiseaux de la Ma'Amora (Maroc): phénologie du peuplement, statut des espèces nicheuses et évolution depuis le début du vingtième siècle. Alauda. 2007;75:15–32.
    Cramp S, Brooks DJ, Dunn E, Gillmor R, Hollom PAD, Hudson R, Nicholson EM, Ogilvie MA, Olney PJS, Roselaar CS, Simmons KEL, Voous KH, Wallace DIM, Wattel J, Wilson MG. Handbook of the birds of Europe, the Middle East and North Africa. The birds of the Western Palearctic (Terns to Woodpeckers), vol. Ⅳ. Oxford, New York: Oxford University Press; 1994.
    Inglis IR, Isaacson AJ, Smith GC, Haynes PJ, Thearle RJP. The effect on the woodpigeon (Columba palumbus) of the introduction of oilseed rape into Britain. Agr Ecosyst Environ. 1997;61:113–21.
    Julliard R, Jiguet F. Statut de conservation en 2003 des oiseaux communs nicheurs en France selon 15 ans de programme Stoc. Alauda. 2005;73:345–56.
    Isenmann P, Moali A. Oiseaux d'Algérie—birds of Algeria. Paris: SEOF & MNHN; 2000.
    Isenmann P, Gaultier Th, El Hilli A, Azafzaf H, Dlensi H, Smart M. Oiseaux de Tunisie—birds of Tunisia. Paris: SEOF & MNHN; 2005.
    Bergier P, Franchimont J, Thévenot M. Implantation et expansion géographique de deux espèces de Columbidés au Maroc: La Tourterelle turque Streptopelia decaocto et la Tourterelle maillée Streptopelia senegalensis. Alauda. 1999;67:23–36.
    Guezoul O, Doumandji S, Voisin JF, Baziz B, Souttou K, Sekour M. Contribution à l'Ornithologie dans deux régions phénicicoles (Sahara septentrional). In: International Conference Algerian Ornithology, 11–13 Nov 2006. Algeria: University of Batna; 2006.
    Chenchouni H. Diversity assessment of vertebrate fauna in a wetland of hot hyperarid lands. Arid Ecosystems. 2012;2:253–63.
    Guezoul O, Chenchouni H, Sekour M, Ababsa L, Souttou K, Doumandji S. An avifaunal survey of mesic manmade ecosystems "Oases" in Algerian hot-hyperarid lands. Saudi J Biol Sci. 2013;20:37–43.
    Eraud C, Boutin J-M, Roux D, Faivre B. Spatial dynamics of an invasive bird species assessed using robust design occupancy analysis: the case of the Eurasian collared dove (Streptopelia decaocto) in France. J Biogeogr. 2007;34:1077–86.
    Fujisaki I, Pearlstine EV, Mazzotti FJ. The rapid spread of invasive Eurasian Collared Doves Streptopelia decaocto in the continental USA follows human-altered habitats. Ibis. 2010;152:622–32.
    Hengeveld R, Van Den Bosch F. The expansion velocity of the Collared Dove (Streptopelia decaocto) population in Europe. Ardea. 1991;79:67–72.
    Bendjoudi D. Le peuplement avien de la Mitidja du nouveau en particulier sur les espèces introduites ou en plein extension. In: The 3rd International Seminar on Animal Biology, 09–11 May 2011. Algeria: University of Constantine; 2011.
