Identification of vocal individuality in male cuckoos using different analytical techniques

Background

Due to the ability of the Common Cuckoo (Cuculus canorus) to parasitize up to 300 different bird species (Erritzøe et al. 2012), their presence may mirror the overall richness of their potential avian hosts and even the overall bird diversity of a region (Morelli et al. 2015; Tryjanowski and Morelli 2015). However, estimating the abundance of a cuckoo population remains problematic. First, the home range of an individual cuckoo can be quite large and covers an area up to 135 km² in the breeding season (Vogl et al. 2004; Williams et al. 2015). Second, although male cuckoos are territorial, it is not unusual to find several male cuckoos occurring in close proximity to each other during the breeding season (Møller et al. 2016a, b). Consequently, there are risks of double-counting the same individual (overestimation) or misidentifying different individuals as being the same individual (underestimation) when using typical survey methods that rely on visual observations such as line transects or point counts.

Male cuckoo utters a loud, characteristic "cuck-ooo" call during the breeding season. Two recent studies have found that inter-individual variation of the cuckoo call is greater than intra-individual variation (Jung et al. 2014; Zsebők et al. 2017). In these studies, the authors applied discriminant function analyses (DFA) to classify calls to individual males and found extremely high correct classification rate, almost 100%, revealing clear inter-individual difference in call features (Zsebők et al. 2017). However, we still do not know for certain whether acoustic features in the cuckoo call remain stable over time, since in above mentioned study, individuals of calling cuckoo males were recorded only once. Stability of individual acoustic features forms the basis to monitor and re-identify individuals based on vocal individuality (Fox 2008; Xia et al. 2010). Even for estimating population density based on vocal individuality, stability of individual acoustic features is a key assumption during the survey interval (Dawson and Efford 2009; Frommolt and Tauchert 2014). Temporary changes of acoustic features may result in greater variation in calls within individuals, rather than between different individuals, and this would result in incorrect identification. DFA is one analytical method applied to classify individuals based on call characteristics (Gilbert et al. 1994). The use of DFA is dependent on collecting an adequate number of calls per male, with previous recommendations stating that this should be at least three times larger than the number of variables used in the DFA (Williams and Titus 1988). In the only previous study on vocal individuality in cuckoos, individuals deemed to have an insufficient number of calls (i.e. less than ten) were removed from the DFA (Zsebők et al. 2017). Since it is known that a quarter of male cuckoos generally emit less than ten calls within one calling bout (Møller et al. 2016a, b), the application of DFA for identifying vocal individuality in cuckoos could be restricted.

In this study, we compared within- and between-individual variation in male cuckoo calls in a Northeast Asian population. We used correlation analysis and DFA to assess the feasibility of using call individuality to discriminate between individual males. We estimate the number of different male cuckoos based on the correlation analysis. Based on the repeated recording from banded males, we also investigated the stability of call features in male cuckoos over a 5-day period.

Methods

Study area and sound recording

Field work was conducted from July 10th to July 17th in 2016, in the Liaohe Delta Nature Reserve (41.033929°N; 121.725244°E), Liaoning Province, northeast China. This region is one of the most important estuarine wetlands in the country and has the largest area of reed-bed habitat along the coastal region of China. Here, the Common Cuckoo is a summer breeding species, and mainly parasitizes the Oriental Reed Warbler (Acrocephalus orientalis) during late May to early August (Li et al. 2016). Using mist nets, we trapped 48 individual cuckoos during the first 3 days of the study. Individuals were immediately banded with a numbered metal band, and marked by waterproof paint applied to the abdomen of the bird to enable observers to distinguish individuals from distance.

We recorded cuckoo vocalizations using a TASCAM HD-P2 portable digital recorder (Tascam Co., Japan) and a Sennheiser MKH416 P48 external directional microphone (Sennheiser Co., Germany), with a sampling rate of 44.1 kHz and a sampling accuracy of 16 bits. In the study area, male cuckoos regularly call when perching on electrical wires (Li et al. 2016), which enabled us to approach within 10‒30 m of calling males and obtain the best possible recording with minimal background noise. Consequently, we were able to record vocalizations of 13 different males, three of which were individually marked (banded) before recording. The fate of the other 45 banded cuckoos was unknown. Although we did not band the other ten males, we avoided repeated sampling from the same male by travelling along roads within half a day and recording new males that were at least 2 km away from males which had been recorded. For the three banded males, we recorded each individual's calling on two, three, and five successive days respectively.

Sound analysis

We used Avisoft-SASLab Pro software (Avisoft Bioacoustics, Berlin, Germany) to resample the recordings using an 8 kHz sampling frequency and created spectrograms with the following settings: sample size, 16 bits; Fast Fourier transform length, 256 points; Hamming window with a frame size of 100% and an overlap of 50%; frequency resolution, 31 Hz; and time resolution of 16 ms. Male cuckoo calls comprise of two elements (Fig. 1) and we manually separated each element, which is a continuous signal in the spectrogram, following the procedure used in previous studies (see Fuisz and de Kort 2007; Wei et al. 2015; Zsebők et al. 2017). We then automatically measured each element: firstly, we used Avisoft-SASLab Pro software to automatically search the maximum amplitude in each element, and then determine the start and end points of each element at approximately 16 dB lever lower than the maximum amplitude. At 16 dB lever, most measured elements were explicit and above the background noise. The following variables were measured: duration of the element (t_dur1, t_dur2); duration from the start of element to the point of maximum amplitude within that element (t_dis1, t_dis2); frequency at the start point of the element (f_sta1, f_sta2); frequency at the end point of the element (f_end1, f_end2); minimum frequency of the element (f_min1, f_mim2); maximum frequency of the element (f_max1, f_max2); frequency of the maximum amplitude within the element (f_peak1, f_peak2); time interval between the first and second element (t_int). We measured ten calls for each male from each day. For two males with less than ten calls, we measured the total number of seven calls. Original measurement data of call features can be seen in Additional file 1: Table S1.

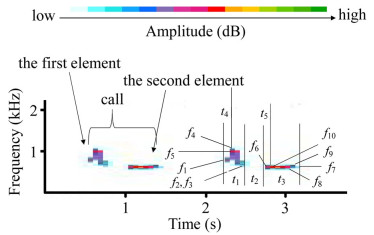

Figure  1.  Spectrogram of male Common Cuckoo (Cuculus canorus) call, and measured variables. Explanation of variables: duration of the element (t₁, t₃); time interval between the first and second element (t₂); duration from the start of element to the point of maximum amplitude within that element (t₄, t₅); frequency at the start point of the element (f₁, f₆); frequency at the end point of the element (f₂, f₇); minimum frequencies of the element (f₃, f₈); maximum frequency of the element (f₄, f₉); frequency of the maximum amplitude within the element (f₅, f₁₀)

DownLoad: Full-Size Img PowerPoint

Data analyses

We collected two sets of acoustic data. The first data set contained 94 calls from ten unbanded males, and 30 calls from the three banded males, all of which were recorded on the same day. The second data set contained only recordings from the three banded males, and consisted of 20 calls from the male recorded on two continuous days, 30 calls from the male recorded on three continuous days, and 38 calls from the male recorded on five continuous days. The consistency of call features was examined using only the second (banded male) data set, whereas all other analyses were based on the first data set (combined banded and unbanded males).

We statistically described the frequency and temporal characteristics of cuckoos' call using the average measurements for each male. We used coefficients of variation (CV) for each variable to compare differences within (CV_w) and between (CV_a) individuals (Robisson et al. 1993). We computed CV for each individual based on all calls belonging to that individual, and then calculated the mean as CV_w. We used the average value for each individual to compute CV_a. The ratio of CV_a/CV_w is the measurement of potential individual coding (PIC) which shows the importance of each variable used in identifying individuals (Charrier et al. 2001, 2003). We determined candidate variables for identifying individuals when the variable PIC value was > 1, meaning that the variable showed greater variation between individuals than within an individual.

Using the first data set (combined banded and unbanded males), we standardized 12 variables, which PIC value was greater than 1, using the formula: ${{\left({{\text{value}} - {\text{mean}}} \right)} \mathord{\left/ {\vphantom {{\left({{\text{value}} - {\text{mean}}} \right)} {\text{standard deviation}}}} \right. \kern-0pt} {\text{standard deviation}}}$. Based on these 12 standardized variables, we calculated the similarity of all pairs of calls using Pearson's R for both within individuals and between individuals. Budka et al. (2015) set a value, called a 'threshold' that enabled them to separate the similarity of pair calls of the same male from that of different males, as the former was generally larger than the latter. Following this method, we attempted to find a threshold for individual male cuckoo identification through trial and error. We also estimated the number of males based on the threshold value: if a call's maximum similarity (the maximum similarity between this call and all other calls) was less than the threshold, this call was identified as being from a new male. Spectrogram cross-correlation (e.g. Xia et al. 2011) was not used due to the volume of background noise in the recordings.

To compare the similarity values calculated from both the first and the second data sets, we standardized all variables from the second data set, which only contained the calls from banded males, using the mean and standard deviation calculated from the first (unbanded and banded combined) data set: ${{\left({{\text{value}} - {\text{mean}}} \right)} \mathord{\left/ {\vphantom {{\left({{\text{value}} - {\text{mean}}} \right)} {\text{standard deviation}}}} \right. \kern-0pt} {\text{standard deviation}}}$. Then using the second data set, we calculated similarity (Pearson's R) for each possible combination of calls from the same male in order to test the consistency of call features over time. We hypothesized that the similarity of all combinations of calls from different days within the same individual male would be larger than the similarity of all combinations of calls from different males.

We also used DFA (linear combination of variables that maximally separate the data points pertaining to different categories) based on the original data set with 15 variables. In the first data set, results from jack-knifed classifications are reported as percentages of songs correctly assigned. In jack-knifed classifications, each song was assigned to an individual on the basis of discriminant functions calculated from all songs in the data set except the one being classified. In the second data set, we used the 13 discriminant functions (corresponding to 13 males) constructed based on the first data set to classify calls recorded from different days. All analyses were performed using R v. 3.3.1 (R Core Development Team 2016).

Results

Based on 124 calls from 13 males, we found that the first element of the male cuckoo's call had a relatively shorter duration and higher frequency than the second element (paired samples t test, t₁₂₃ = -25.754, p < 0.001, for duration; t₁₂₃ = 45.812, p < 0.001, for frequency of the maximum amplitude) (Table 1). Besides duration of the first element (t-dur1) and duration from the start of element to the location of the maximum amplitude (t-dis1, t-dis2), all other variables showed higher between-individuals variation than within-individual variation (Table 1).

Table  1.  Call features of male Common Cuckoos based on 124 calls from 13 males

Variable*	Mean ±SD	Minimum	Maximum	CVw	CVa	CVa/CVw
tdur1 (s)	0.067 ±0.009	0.050	0.080	0.154	0.130	0.844
tdis1 (s)	0.033 ±0.006	0.020	0.040	0.284	0.196	0.690
fsta1 (kHz)	0.762 ±0.036	0.707	0.828	0.031	0.047	1.519
fend1 (kHz)	0.727 ±0.028	0.668	0.757	0.036	0.039	1.095
fpeak1 (kHz)	0.830 ±0.040	0.775	0.918	0.027	0.048	1.769
fmin1 (kHz)	0.722 ±0.027	0.668	0.755	0.032	0.037	1.157
fmax1 (kHz)	0.839 ±0.042	0.795	0.924	0.015	0.050	3.399
tint (s)	0.226 ±0.035	0.170	0.270	0.051	0.155	3.023
tdur2 (s)	0.117 ±0.017	0.100	0.150	0.108	0.147	1.356
tdis2 (s)	0.052 ±0.011	0.040	0.070	0.296	0.216	0.729
fsta2 (kHz)	0.660 ±0.025	0.620	0.705	0.011	0.038	3.283
fend2 (kHz)	0.665 ±0.026	0.620	0.713	0.020	0.039	1.909
fpeak2 (kHz)	0.673 ±0.026	0.623	0.721	0.008	0.038	4.603
fmin2 (kHz)	0.657 ±0.025	0.614	0.705	0.017	0.038	2.222
fmax2 (kHz)	0.676 ±0.026	0.629	0.724	0.012	0.038	3.151
* Duration of the element (tdur1, tdur2); duration from the start of element to the point of maximum amplitude within that element (tdis1, tdis2); frequency at the start point of the element (fsta1, fsta2); frequency at the end point of the element (fend1, fend2); minimum frequencies of the element (fmin1, fmin2); maximum frequency of the element (fmax1, fmax2); frequency of the maximum amplitude within the element (fpeak1, fpeak2); time interval between the first and second element (tint)

 | Show Table

DownLoad: CSV

Based on the first data set (combined banded and unbanded males), similarity of paired calls from the same male was 0.615 ±0.243 (mean ±SD, the same below), which was significantly higher than the similarity of paired calls from different males (-0.050 ±0.384) (independent samples t test, t₇₆₂₄ = 30.522, p < 0.001) (Fig. 2). We found that as the threshold increased, the probability of assigning calls to different males, that actually belong to the same male increased, while the probability of assigning calls belonging to different males to the same male decreased (Fig. 3). When the threshold was set at 0.6 (ranging from 0.561 to 0.640), both the number of calls belonging to the same male assigned to different males divided by the total number of calls, and the number of calls belonging to different males assigned to the same male divided by the total number of calls were less than 10%, and the number of estimated individual males identified from the analyses ranged from 12 to 14, which was very close to the real (observed) number of 13 males (Fig. 3).

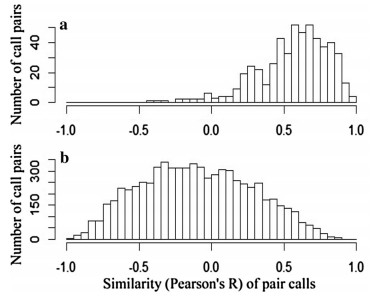

Figure  2.  The distribution of similarity values for call pairs using Pearson's R from the same male (a) and different males (b), based on these 12 standardized variables

DownLoad: Full-Size Img PowerPoint

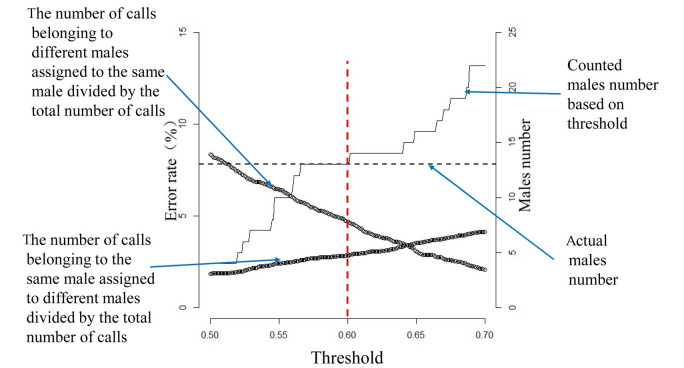

Figure  3.  Probability of mistakenly assigning calls to same male or different males and counted males number changed with different threshold, based on the first data set (combined banded and unbanded males). Red dotted line indicates the optimal threshold used to assign calls to same male or different males

DownLoad: Full-Size Img PowerPoint

Based on the second (banded male) data set, the similarity of calls from all pairs of males from different days (0.756 ±0.121) showed a slight decrease when compared to the similarity from the same day (0.795 ±0.127) (independent samples t test, t₁₄₇₁ = 5.543, p < 0.001). Furthermore, the similarity with 4-day interval (comparing calls from day 1 to calls from day 5) was 0.799 ±0.113, which was significantly larger than 0.6 (one-sample t test, t₃₉ = 11.114, p < 0.001) (Fig. 4).

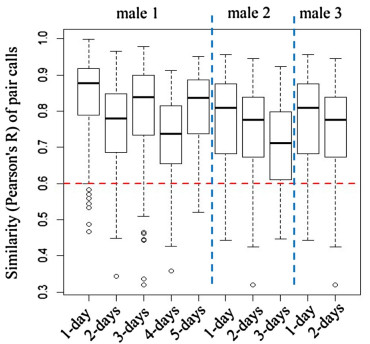

Figure  4.  Similarity of paired calls from different days within the same male, from three banded males. Red dotted line indicates the threshold used to distinguish calls from belonging either to the same or different males in Fig. 3. 1-day: calls from the same day; 2-day: calls from two consecutive days; 3-day: calls from days with two days interval; 4-day: calls from days with 3 days interval; 5-day: calls from days with 4 days interval

DownLoad: Full-Size Img PowerPoint

DFA based on the 13 individuals from the first data set yielded a high rate (91.9%) of correct classification of individuals. For calls recorded from different days (second dataset), the rate of correct classification was 82.1% for male recorded on five continuous days (100% for the same day, 1-day interval and 2-day interval; 50% for the 3-day interval and 4-day interval), and 100% for the other two males that were recorded across two and three continuous days.

Discussion

In this study, we found that calls from the same male were significantly more similar in their characteristics than calls from different males, i.e., between-individual variation in calls was much greater than within-individual variation. Studies of male cuckoos in Korea using Principal Component Analyses (PCA) and ANOVA tests revealed that individual males produce different calls in terms of spectral and temporal features and that between-male variation was also greater than within-individual variation (see Jung et al. 2014). DFA has also been used successfully to achieve almost 100% correct rate of classifying calls to individual males, indicating very high variability in the call characteristics between different males (Zsebők et al. 2017). Thus, across different cuckoo populations, it appears that individual male cuckoos may use vocal characteristics to identify different individuals. In some populations, males are highly territorial and expend a lot of time and energy dealing with territorial disputes with neighbors, so recognizing different individuals would be beneficial for males by reducing the need for territorial conflict (Jung et al. 2014).

Using two different analytical methods, we achieved a high rate of correct classification of individual male cuckoos. Using DFA, we achieved a correct rate of classification for 13 different males of 91.9%. High rates of correct classification were also achieved using the Pearson's R correlation analysis. Correlation analysis has only previously been used in a study to distinguish Corncrake (Crex crex) individuals based on call features (see Budka et al. 2015). DFA requires an adequate number of calls per male to construct robust discriminant functions (Williams and Titus 1988). Correlation analysis can be conducted with much smaller sample sizes (Budka et al. 2015), thus reducing the need to omit males with fewer recordings from the analyses (Zsebők et al. 2017). We suggest that either technique may be suitable for identifying individuality in male cuckoo calls but future studies need to review the data requirements of either method. This is an important consideration, particularly in light of the fact that we failed to identify a threshold to completely separate calls from the same or different males. However, we were still able to achieve a high correct rate to distinguish calls and obtain an accurate number of males under a relatively broad threshold interval (e.g. ranging from 0.561 to 0.640). Threshold is crucial to identify individuals based on correlation analysis. If the threshold is too high, calls belonging to the same male will be assigned to different males, which may lead to overestimate male numbers; by contrast, low threshold may lead to underestimate male numbers.

Based on the calls of the three banded males, we found the similarity of paired calls from different days decreased slightly when compared with the similarity values of paired calls from the same day. In addition, the similarity of paired calls from the same male across a 4-day interval was also larger than the threshold used to distinguish calls from the same or different males, which means that the slight change in call characteristics does not influence individual identification, at least across a 4-day interval, and only considering one individual.

Conclusions

In conclusion, we suggest that vocal individuality represents a suitable basis from which to develop a new and rapid systematic survey method for estimating the abundance of male cuckoos within populations, and that future surveys should consider testing more than one analytical approach to correctly classify individuals based on acoustic signals. As cuckoo occurrence can be used to reflect bird species richness (Morelli et al. 2015; Tryjanowski and Morelli 2015), our findings may also provide an effective and convenient tool to monitor the bird diversity.

Additional file

Additional fle 1: Table S1. Original measurement data of call features of male Common Cuckoos
