Citation: | Yiwen Chen, Yat-tung Yu, Fanjuan Meng, Xueqin Deng, Lei Cao, Anthony David Fox. 2021: Migration routes, population status and important sites used by the globally threatened Black-faced Spoonbill (Platalea minor): a synthesis of surveys and tracking studies. Avian Research, 12(1): 74. DOI: 10.1186/s40657-021-00307-z |
The Black-faced Spoonbill (Platalea minor) is a globally threatened species, nesting mainly in western Korea with smaller numbers breeding in Liaoning Province, China, and Far East Russia. Recent winter field surveys to estimate the species' population size were almost totally conducted in coastal areas, but tracking studies showed that some individuals now winter inland. To ensure its long-term survival, we need a more comprehensive assessment of the current distribution and abundance of the species.

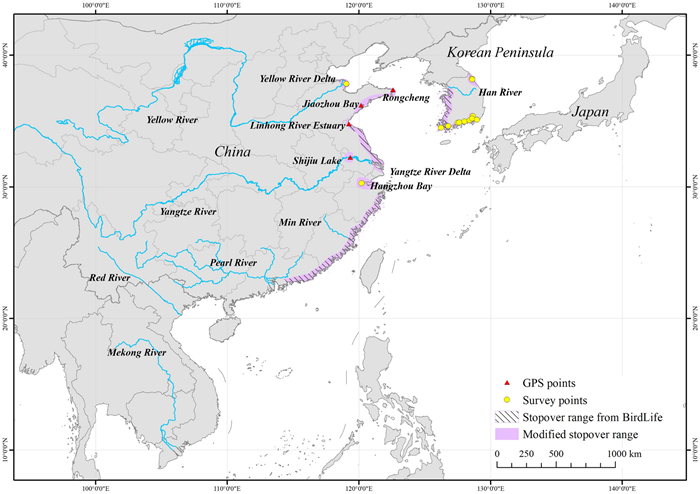

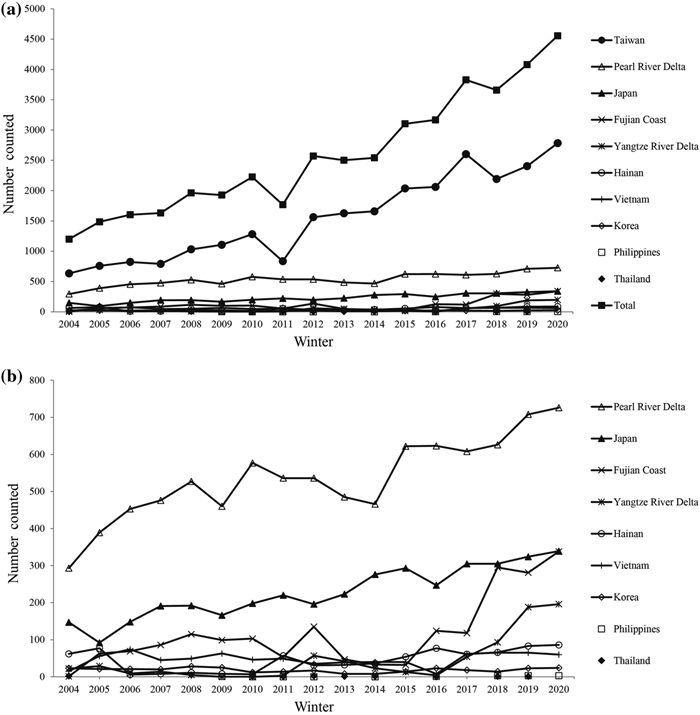

We combined the most recent count data and satellite tracking information to update existing information about the population abundance and distribution of the Black-faced Spoonbill at all stages of its annual life cycle, and how these have changed during 2004–2020.

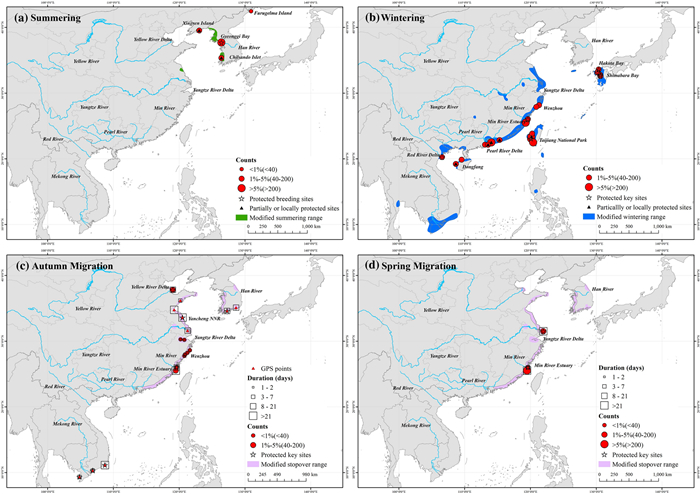

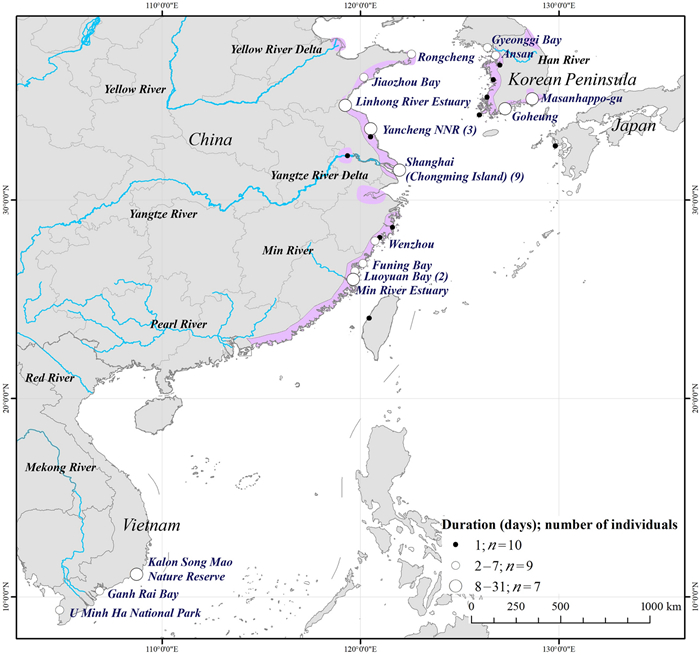

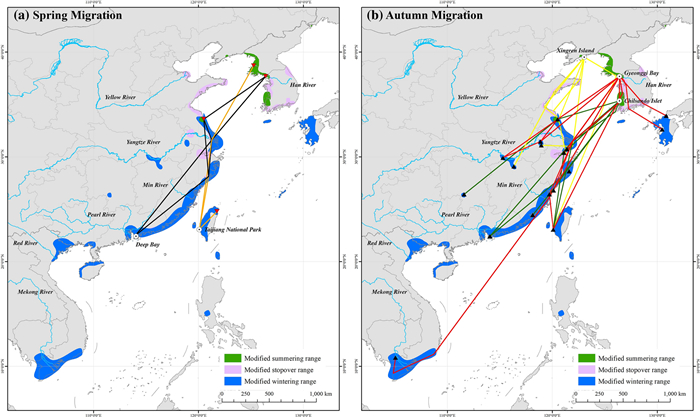

Black-faced Spoonbills mainly breed on the west coast of the Korean peninsula, while immature birds show a wider summer distribution throughout Yellow Sea coastal areas, when a few remain on wintering sites in the south. Combined tracking results and mid-winter counts confirmed known wintering sites on the east and south coasts of China, but showed that the species also winters on wetlands in the Yangtze River floodplain and in Southeast Asia. During 2004–2020, counts of wintering birds in coastal habitats increased from 1198 to 4864, with numbers wintering on the island of Taiwan contributing most to the overall increase. Latest counts found 5222 in 2021. We also identify key wintering and stopover sites as well as their current conservation status.

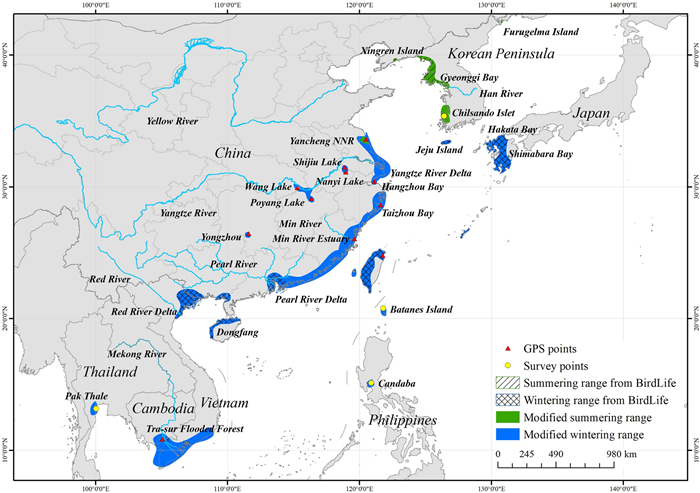

This study revised the known summering and wintering ranges of the Black-faced Spoonbill and assessed the conservation status of key sites based on a combination of field survey and satellite tracking data. We recommend prioritisation of further field research to identify and survey inland wintering areas in the Yangtze River floodplain and summering areas of immature birds. More tracking of adult individuals and birds during spring migration is necessary to fill these information gaps. We also suggest establishing a Black-faced Spoonbill monitoring platform to store, share and show real-time distribution range and population abundance data.
Collision with overhead power lines has become one of the leading causes of mortality to populations of large terrestrial birds (Smallie, 2008). The highest risk species are bustards, as well as various waterbirds such as cranes, storks and flamingos (Fiedler and Wissner, 1980; Ledger et al., 1993; Bevanger, 1998; Janss, 2000). These kinds of birds have limited maneuverability in the air and have difficulty making swift, evasive actions to avoid colliding with power lines (Smallie, 2008).
In 2008 we initiated the first power line surveys for bird strikes in China. Our objective was to assess collision mortality in Black-necked Cranes (Grus nigricollis) and Bar-headed Geese (Anser indicus). With a world population estimated at about 11000, the Black-necked Crane is listed as vulnerable in the IUCN's Red Book (BirdLife International, 2009). This crane breeds on the Qinghai-Tibet Plateau and winters on the Qinghai-Tibet and Yunnan-Guizhou Plateaus. While currently not a species of immediate concern with respect to conservation, the Bar-headed Goose is often found in the same breeding and wintering habitats as the Black-necked Crane (Bishop et al., 2000).
The largest wintering population of Black-necked Cranes and Bar-headed Geese in China occurs around the Yarlung Tsangpo (a river) and its major tributaries in Zhigatse Prefecture of the Tibet Autonomous Region (Bishop et al., 1997, 2000; Bishop and Tsamchu, 2007). Similar to other parts of Tibet and the rest of China, this area is rapidly developing and demand for electric power is high. With plans to increase transmission capability for this region in the near future, bird collisions with power lines are likely to increase. We present here our results from power line surveys for crane and goose strikes conducted during two winters along the Yarlung Tsangpo in Zhigatse Prefecture. We also provide recommendations for mitigating the impact of power lines and for enhancing conservation for cranes, geese and other birds in China.
Our surveys of power lines took place in Zhigatse Prefecture along a 35 km-section of the Yarlung Tsangpo valley from Dongkar Bridge near the city of Zhigatse west to the Tanakpu Chu valley (Fig. 1). In the wider portions of the valley and the major side valleys, barley, wheat and to a lesser extent vegetables such as potatoes and rape seed are the major crops. Cranes and geese forage on the harvested and winter crop (primarily winter wheat) fields throughout the day, flying to and from the river for both diurnal and nocturnal roosting (Bishop et al. 1997, 1998). Mid-winter counts in January 2009 and 2010 each recorded about 600 Black-necked Cranes and 1500 Bar-headed Geese in the area between the Dongkar Bridge and the mouth of the Shab Chu (Bishop et al., unpublished data).
Currently, one 35 kV transmission power line is situated in the study area. From Zhigatse City, the power line goes north and crosses the Yarlung Tsangpo, parallel and adjacent to the Dongkar Bridge. The transmission line then continues west, veering north to a power transmission station in Tanakpu Valley and then south out of this valley before continuing west towards Zhetongmen. Branching off from and often parallel to the 35 kV power line are many 10 kV distribution lines from which additional, low-voltage distribution lines branch off to villages. Most support poles are about 15 m high and consist of two parallel wires strung ~1.5 m apart. Distance between support poles is 50–100 m depending on location and land configuration. In our study area, only small sections of the 35 kV power line have ground wires, the topmost and non-conducting wire that is used to minimize power outages caused by lightning strikes.
During each of the two winters, we established and surveyed three transects along the 35 kV power line. Each transect was ~4 km long (Fig. 1). Due to logistical constraints, the Dongkar Bridge transect was not continuous but instead was located on the south and north sides of the river for a total of ~4 km. For our surveys, transects were searched in the morning for dead or injured birds by two observers walking zig-zag under the power line. Using a support pole as the transect center, each observer surveyed a 30 m strip. When a crane or goose was encountered, the type of injury and condition was assessed and recorded along with the location and the presence or absence of ground wires. We also interviewed local farmers and government employees about power line strikes by cranes and geese. Whenever possible, we visited sites identified as having had a recent strike. In addition, to understand the role of weather in power line strikes better, we examined wind data from the closest weather station (~12 km west of Tanakpu Valley) for the 2008/09 and 2009/10 winters.
In the 2009/10 winter, we opportunistically recorded flight responses of cranes and geese to power lines observed while either conducting the power line transects or surveying the habitat the cranes use. Flight response data recorded included species, flock size and behavior (avoidance, altitude flown above or altitude flown below lines).
We conducted power line surveys between 21 January – 9 February 2009 and 16 December 2009 – 8 January 2010. In total, we recorded on transects two dead geese, both on the Dongkar transect and in year 2. Parallel to, but outside of the 60 m transect strip, we recorded an additional two dead cranes, both in year 1 (Table 1). Distance from the center of the power line to carcasses ranged from 20–48 m. Additionally, local sources informed us and led us to a dead crane < 80 m from a powerline located ~7 km west of the Darmar West transect. We recorded three injured birds, all near the Darmar East transect. These included two injured geese observed 40 and 200 m, respectively, from the power line transect and an injured crane < 0.5 km from the power line. Both injured geese were observed for 2–3 days and the injured crane for five days after which they disappeared. In all, we documented broken wings in two of the three crane mortalities and the one injured crane. Of the two injured Bar-headed Geese, we observed a broken wing and a broken leg, respectively. Carcasses of one crane and two geese had been scavenged precluding an assessment of injuries.
Powerline transect | Surveys | On transect | Off transect | |||
Injured | Dead | Injured | Dead | |||
Year 1 | ||||||
Darmar East | 10 | 0 | 0 | 2 BHG a | ||
Tangba | 10 | 0 | 0 | |||
Yangqu | 8 | 0 | 0 | 2 BNC b | ||
Year 2 | ||||||
Darmar West | 17 | 0 | 0 | |||
Dongkar | 11 | 2 BHG | ||||
Yangqu | 9 | 0 | 0 | |||
a one goose 10 m and one goose 130 m from transect edge; b both cranes together and 18 m from transect edge. |
We observed a total of 151 cranes and 1982 geese in flight approaching the power lines in the 2009/10 winter. Most cranes and geese flew over power lines that were encountered while in flight (Fig. 2). At the Darmar West transect in Tanakpu Valley, 85% of all cranes (n = 151) and 100% of all geese (n = 812) flew over power lines. At Yangqu and Dongkar transects, 94% and 70%, respectively, of all geese (Yangqu, n = 492; Dongkar, n = 678) flew over power lines; however, no observations were recorded of cranes in flight at these transects.
Our results show that power lines are an important source of injuries and mortality for both Black-necked Cranes and Bar-headed Geese. Based on either injuries and/or proximity to the power line, all crane and goose mortalities recorded, as well as the one injured crane and two injured geese observed, were likely caused by power line strikes. Two of the geese and one crane carcass, located on and near transects had been scavenged, suggesting that the power line strikes had occurred weeks to months earlier. However, we believe that we detected the two injured geese and one injured crane almost immediately after their injuries. At the same time, the rapid disappearance of all three injured birds shortly after their detections suggests that injured birds quickly die as a result of predation or from internal injuries.
Inclement weather can affect the likelihood of bird strikes (Brown et al., 1987; Brown and Drewien, 1995). For example, at Dashanbao Nature Reserve in northeastern Yunnan, six Black-necked Cranes were killed as a result of power line strikes. All strikes occurred when fog persisted over a period of several days (Kong, 2008). While low-lying fog sometimes occurs along the Yarlung Tsangpo, it rarely persists with the onset of daylight. More frequently, inclement winter weather consists of high winds, gusts and dust storms along the Yarlung Tsangpo (Table 2), especially during late winter. In our study area, daily maximum wind speeds almost always occur in the afternoons between 14:00 and 19:00 hours. From late February through March, instant extreme winds with a Beaufort scale wind force > 8 (> 17.2 m/s) occur almost daily. We found that cranes and geese tended not to fly during sustained high winds and dust storms unless they were disturbed. While we could not link avian mortality to wind factors due to our small sample size, we suggest additional research be conducted to determine the effect of high winds and wind gusts on crane and goose power line strikes, especially during the late winter period.
Statistics | 2008/09 winter | 2009/10 winter | |||||
Speed | Maximum speed | Instant maximum speed | Speed | Maximum speed | Instant maximum speed | ||
Average (STD) | 9.27 | 27.33 | 52.96 | 9.38 | 27.52 | 54.22 | |
(2.45) | (6.42) | (16.00) | (2.41) | (6.79) | (16.03) | ||
Maximum | 18.35 | 41.02 | 98.59 | 17.99 | 46.77 | 103.26 | |
Minimum | 4.68 | 10.80 | 13.31 | 4.68 | 11.88 | 19.42 |
Studies in the U.S.A. have found an increased incidence of power line collisions by Sandhill Cranes (G. canadensis) and Canada Geese (Branta canadensis) associated with proximity to feeding and roosting areas (Brown et al., 1987; Brown and Drewien, 1995). Our results suggest a similar relationship to power line strikes. We observed no injured birds nor did we discover any mortality at Tangba, while all other transects had at least one injury or mortality. However, no diurnal or nocturnal roost occurred in the vicinity of Tangba for either cranes or geese whereas the four other power line transects were all within 1–2 km of a roost site and on the flight path to the farm fields.
Flight paths of birds to concentration areas such as roost sites and foraging areas are affected by topographic features (Welty, 1962; Faanes, 1987). Similarly, the location of the power line relative to the mountains also affects bird strikes. The Darmar East transect in the Tanakpu Chu Valley had the largest number of injuries. The Darmar East and West power lines run north-south to and from a power station located near the head of the valley. Darmar East is sited away from the edge of the mountains, towards the center of the valley. The Tanakpu Valley is a relatively small side valley of the Yarlung Tsangpo. This valley is an important agriculture area, however, and as a result attracts large numbers of cranes (maximum = 200) and geese (maximum = 700). The combination of a small valley and two large, 35 kV power lines most likely contributed to the high numbers of injuries observed in this area.
We most likely underestimated mortalities and injuries around the Dongkar Bridge because our transect survey did not cover the power line where it crosses the river. Several hundred geese roost in the river near the bridge and cross this power line to fly southeast to the Nyang River Valley to forage during the day. Bird strikes would tend to fall into the river and may not have been noticed. In addition, Dongkar's 35 kV power line is the only section along the 35 km stretch of river with ground wires. Power lines with ground wires pose more danger to flying birds because ground wires are the topmost wire and are thinner in diameter than electric transmission wires, making them less visible (Brown et al., 1987; Brown and Drewien, 1995).
The impact of power lines to both cranes and geese can best be mitigated through a combination of careful siting of future power lines and power line marking. Prior to the decision of where a power line should be sited, waterbirds should be monitored for at least one season to establish flight patterns and locations of nocturnal roost sites. Brown et al. (1987) recommended that new power lines be located more than 2 km from traditional roost and feeding sites. In addition, routing of new power lines closely parallel to existing power lines, or other existing sources of disturbance such as highways, is generally preferable to putting lines across low areas without any current obstruction or sources of disturbance.
Marking power lines appreciably reduces mortality (Hunting, 2002). Power lines, new or old, located in the flight path from nocturnal crane and goose roosts, crossing the mouths of important agricultural side valleys or near important foraging areas, should be marked at intervals with devices that increase visibility of the lines. Power line marking devices that have been developed include bird flight diverters, bird flight flappers and fire-fly diverters (Fig. 3). Bird flight diverters used in South Africa decreased strikes by waterfowl, flamingos and cranes (Ledger et al., 1993). Bird flappers, also used in South Africa to reduce crane collisions, have been shown to be more effective than the bird flight diverters (McCann, 2001). The fire-fly diverter has been designed to reflect ultraviolet and visible light in moonlight or under dim light conditions. This device has been used in South Africa and Botswana and is reported to have worked well for curbing flamingo mortality on overhead lines (Smallie, 2008). Because both cranes and geese often leave and return to roosts under dim light or in near darkness, marking devices that are visible in the dark would be most effective if attached to power lines located close to roost sites.
Ground wires pose a special problem. Ground wire removal has been demonstrated to reduce mortality (Brown et al., 1987) and should be employed where possible. However, because ground wire removal increases the probability of a lightning-caused power outage, other means of ground wire modification should be explored. Options include marking ground wires with technically and economically feasible power line marking devices (see Fig. 3) at specific, critical areas where strikes perennially occur (Brown and Drewien, 1995).
In conclusion, large waterbirds in China will continue to face a gauntlet of power lines in the future. Power line strikes can be mitigated through careful planning and mitigation devices. Given the rapid growth of electric transmission and distribution lines currently underway in China, a special effort should be made to educate engineers and managers about the importance of bird conservation and the methods available to mitigate power line strikes.
Suolang Yangjin, Ba Jia, Gongsang Duoji, Nima Zhaxi, Ciren Lamu and Lunzhu Luobu from the Northeast Forestry University participated in this study, under supervision of Professor Li Feng. Financial support was provided by the Continental Minerals Corporation. We would like to thank the staff of the Continental Minerals Corporation, especially Basang and Deirdre Riley, for their assistance in data collection as well as logistical arrangements. We thank Jim Harris and Sara Moore from the International Crane Foundation as well as two anonymous reviewers for comments and suggestions that improved this manuscript.
Damba I, Fang L, Yi K, Zhang J, Batbayar N, You J, et al. Flyway structure, breeding, migration and wintering distributions of the globally threatened Swan Goose Anser cygnoides in East Asia. Wildfowl. 2020;6: 97–123.
|
Ding C, Ding W, Yin Z, Sun Y, Xu Y. The breeding site and the conservation of the Black-faced Spoonbill in China. Orient Bird Club Bull. 2000;32: 14–6.
|
Jin W, Liu B, Wu C, Xu J, Zhuge G, Chen Y. A population survey of Black-faced Spoonbill in Zhejiang Province. In: The 7th symposium on biodiversity conservation in Zhejiang Province. 2017.
|
Kennerley PR. A review of the status and distribution of the Black-faced Spoonbill. In: Pickens V, editor. The Hong Kong bird report 1989: 116–25. Hong Kong: Hong Kong Bird Watching Society; 1990.
|
Kim IC, Kim SI. 2004 status of black-faced spoonbill Platalea minor in South Korea. In: Proceedings of 2005 international Black-faced Spoonbill symposium. 2005. p. 41–83.
|
National Research Institute of Cultural Heritage (NRICH). Distribution map of natural monuments in 2007. Daejeon: National Research Institute of Cultural Heritage; 2007.
|
National Research Institute of Cultural Heritage (NRICH). Study on the habitat preservation of natural monument (Black-faced Spoonbill and Chinese Egret) Ⅲ. Daejeon: National Research Institute of Cultural Heritage; 2014.
|
Qiu Y. A new breeding site for Black-faced Spoonbill, an endangered wader, has been found again in Liaoning Province. Chin J Wildl. 2007a;28: 55.
|
Qiu Y. Breeding, hibernation and migration of Platalea minor. J Liaoning for Sci Technol. 2007b;6: 9–13.
|
Ramsar. The criteria for identifying wetlands of international importance. Ramsar Information Paper No. 5. 2007.
|
Shibaev YV. Breeding of the Black-faced Spoonbill (Platalea minor) in Peter the Great Bay (Primorye, Russia). Situation and prospects. Ann Rep pro Natura Fund. 2010;19: 151–64.
|
Yu YT, Swennen C. Black-faced Spoonbill wintering in inland China. BirdingASIA. 2005;63.
|
Yu YT, Li CH, Tse IWL, Fong HHN. International Black-faced Spoonbill census 2020. Hong Kong: Black-faced Spoonbill Research Group, the Hong Kong Bird Watching Society; 2020.
|
Yu YT, Li CH, Tse IWL, Fong HHN. International Black-faced Spoonbill census 2021. Hong Kong: Black-faced Spoonbill Research Group, the Hong Kong Bird Watching Society; 2021.
|
Zhang F. Studies on the interspecies relationship of birds in the breeding sites of the Black-faced Spoonbill. J Mudanjiang Norm U (nat Sci). 2001;2: 9–10.
|
Zhao C, Zhang J, Wu Z, Wang X. Black-faced spoonbills were found in Rongcheng city, Shandong Province. Chin Wildlife. 2003;6: 43.
|
