A potential distribution map of wintering Swan Goose (Anser cygnoides) in the middle and lower Yangtze River floodplain, China

Background

Wetlands play an important role in ecological diversity, and waterbirds are key bio-indicators for wetland health assessments (Wang et al. 2018). Many natural wetlands have been lost in China over the last 50 years with the rapid economic development that has taken place in the 20th century (An et al. 2007). In particular, between 1990 and 2010 almost 30% of China's natural wetlands have vanished (Cyranoski 2009). In recent decades, 19% of inland wetland habitat has been lost in eastern China (Gong et al. 2010). Wetlands in China support huge numbers of migratory waterbirds, and China's remaining wetlands are undergoing extensive degradation due to increasing land reclamation, pollution, and anthropogenic disturbances, leading to a dramatic decrease in the number of wintering Anatidae species (Lu 1996a; Cao et al. 2008a; Wang et al. 2017). Over the last several decades, policymakers and environmental managers have implemented numerous measures for waterbirds conservation in China, such as building up national nature reserves, designating key wetlands as Ramsar Sites (those designated as internationally important wetlands), conducting long-term waterbird surveys, and carrying out public education initiatives (The State Forestry Administration 2015; Zeng et al. 2018). To a certain extent, these efforts have all been successful; however, waterbirds still face increasing pressure from many different directions (Yang et al. 2011; Wang et al. 2017, 2018). Thus far, the conflict between waterbirds conservation and economic development has not only been a local issue but a national concern (Cao and Fox 2009). There has long been a consensus of opinion that a sustainable solution is urgently needed in the form of a rectified management plan.

One of the prerequisites for developing a long-term, efficient management plan to resolve the conflicts between waterbirds conservation and anthropogenic demands is to gather reliable information regarding the current wintering sites and habitat usages of species under consideration (Wisz et al. 2008). Such an overview can help us identify species distribution patterns and behavior across wetlands and consequently aid in the improvement of habitat management and restoration (Franklin and Miller 2010). However, without adequate information, current policies used to allocate funds for the construction of nature reserves as well as ecological monitoring initiatives will fail to subsidize the cost of implementing species protection measures while allowing migratory connectivity.

The Swan Goose (Anser cygnoides) breeds in western and central Mongolia, northeastern China, which borders both China and Russia, while breeding also occurs in Sakhalin as well as areas close to the Russian mainland (Kear 2005). However, this species almost exclusively winters in China, namely, between southern and eastern China, at a number of seasonal recessional wetlands along the middle and lower Yangtze River floodplain (Lu 1996b; Fox et al. 2008; Zhang et al. 2011). The latest population size of this species was estimated to range from 60, 000 to 78, 000 (Wetlands International 2012), and it has been categorized as a vulnerable species (the International Union for Conservation of Nature (IUCN)). Although there have been some studies on distribution changes and the population status of wintering Swan Goose populations in China, annual survey data were the only supportive evidence used in these studies (Zhang et al. 2011; Wang et al. 2012; Zhao et al. 2012), and such empirical data may inadvertently lead to subjective results. Thus far, no such efforts have included advanced technological tools, such as modeling, which is based on empirical data as well as habitat information at large spatial scales that are used to determine the population distribution of Swan Goose populations throughout China. Accordingly, conservation managers critically require a prospective species distribution map to identify as yet unidentified zones that are likely to be used by Swan Geese for long-term habitat conservation and restoration planning.

In recent years, species distribution models have been increasingly used to predict the potential habitats of many species. Such tools may be used to associate empirical counting data to environmental variables. They are based on statistical or theoretical responses to calculate and infer reasonable predictions (Guisan and Thuiller 2005). In some cases, both "present" and "absent" data are required for model development (Corsi et al. 2000; Guisan and Zimmerman 2000; Elith 2002; Scott et al. 2002). However, in most cases, not all species "absent" data are recorded, making the maximum entropy method indispensable because it only requires "presence-only" data, which has been frequently used to forecast potential species distributions (Phillips et al. 2006).

In this study, we investigated factors associated with the distribution of Swan Goose populations in the middle and lower Yangtze River floodplain, China, and introduced a new prediction map to determine prospective habitats that this species may utilize within their wintering area by employing the maximum entropy modeling method. The objective of this study was to provide consultative information to use for habitat conservation and species preservation measures of Swan Goose populations. Findings from our study may also contribute to the development of China's "ecological redline policy".

Methods

Study area

The middle and lower Yangtze River floodplain stretches from the Three Gorges Dam and across Hubei, Hunan, Jiangxi, Anhui, and Jiangsu provinces to the estuary in Shanghai, with a total length of 1850 km (Zhao et al. 2012). Wetlands located in this area are important for waterbirds, especially during the wintering season (Scott 1989). Many globally threatened Anatidae species, such as a significant proportion of the Swan Goose population, winter in this region (Cao et al. 2008b). Poyang Lake (5100 km²), the largest freshwater lake in China, is the most important wintering area for the Swan Goose. Dongting Lake (4350 km²) and lakes in Anhui Province were once major wintering areas for the Swan Goose, however, only a scattering of the overall population still winters in these area due to changes in lake hydrology and the loss of submerged vegetation, which likely resulted from the construction of the Three Gorges Dam in conjunction with intensive aquacultural activities (Xu et al. 2006; Zhang et al. 2011).

The middle and lower Yangtze River floodplain is under the influence of a subtropical monsoon climate, and the elevation of most of its area is below 50 m. The annual average temperature is 18 ℃, while the average winter temperature is approximately 5 ℃. Average annual precipitation ranges from 1000 to 1400 mm, mainly occurring from March to August.

Swan Goose distribution data

Swan Goose distribution records were collected from three major resources: synchronous waterbird surveys conducted throughout the Yangtze River floodplain in February 2004 and 2005 (Barter et al. 2004, 2006) and our field surveys conducted in lakes in Anhui Province between 2007‒2015 and Poyang Lake in the winter of 2014/2015 and 2015/2016. Other databases used were based on published articles, specialized reports from relevant organizations, and communication with experts (Cao et al. 2008a, b; Fox et al. 2008; Tu et al. 2009; Zhang et al. 2011; Zhu et al. 2012; Liao et al. 2014; Jia et al. 2016; Wang et al. 2017). In total, data from 97 observed wintering sites were extracted from 1263 survey sites, excluding non-wintering sites and duplicates. Most coordinates taken at these sites were recorded at the observers' position. However, due to the observational scope of optical instruments (such as binoculalr), this study presupposed the presence of a Swan Goose population at a radius of 1 km from the position of the observer. We combined observation records during the winters of 2003/2004-2014/2015 with detailed maps to describe the overall occurrence of Swan Goose population (Fig. 1). The distribution data of Swan Goose population used in this study were taken from November to March.

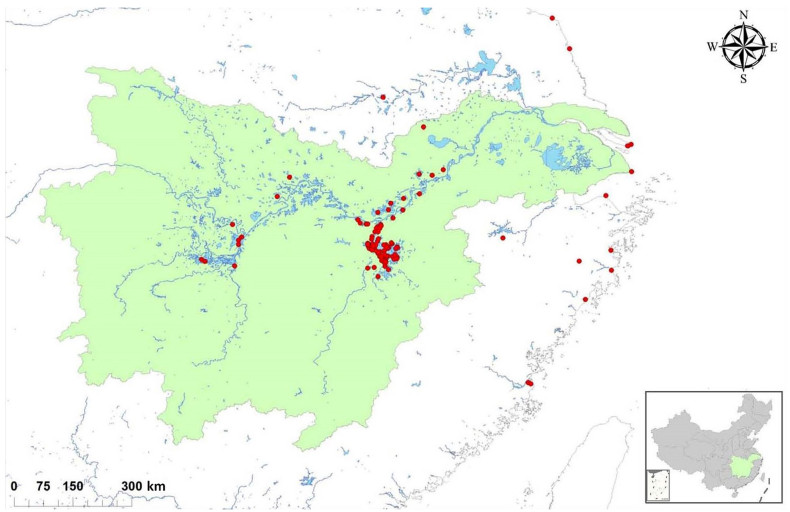

Figure  1.  The presence of wintering Swan Goose population across South and East China (2004‒2015). Red dots represent the presence of this species during survey periods

DownLoad: Full-Size Img PowerPoint

Environmental variables

The environmental variables used in this study, which could potentially influence the distribution of Swan Goose populations, were determined by previous studies on geese or other waterbird species. Climate change and anthropogenic activity have long been thought to affect the winter distribution of waterbirds (Zöckler et al. 2008; Clausen et al. 2013). Previous studies have shown that temperature, precipitation, and elevation are highly correlated to geese distribution and abundance (Wisz et al. 2008; Moriguchi et al. 2013; Zhang et al. 2016; Cleasby et al. 2017). Geese are herbivores, and, during the winter, Swan Geese grub in shallow waters and bare areas for submerged Vallisneria spiralis tubers (Zhang et al. 2015a). Hence, they could easily be disturbed by frequent anthropogenic activities in open areas close to where they feed. Moreover, data obtained using the normalized difference vegetation index (NDVI), a proxy for terrestrial net primary production, have typically been used to link the distribution of herbivorous bird species (Cadahía et al. 2017; Suárez-Seoane et al. 2017). Thus, NDVI may be used as a predictor of distribution in prediction models designed for grazing waterbird species (Wu et al. 2014).

In total, we used 13 bioclimatic and 8 environmental variables as predictors in the model (Additional file 1: Table S1). High resolution (from 30 arcseconds to 10 arcminutes) bioclimatic variable layers provided by WorldClim Data (from 1950 to 2000) obtained from weather stations were also used. We downloaded 13 bioclimatic variables at a resolution of 30 arcseconds, including annual mean temperature, mean diurnal range, isothermality (the temperature ratio between the diurnal and annual range), temperature seasonality, minimum temperature of coldest month, annual temperature range, mean temperature of driest quarter, mean temperature of coldest quarter, annual precipitation, precipitation of driest month, precipitation seasonality, precipitation of driest quarter and precipitation of coldest quarter (http://www.worldclim.org). Elevation data were downloaded from the same website as climatic variables. We used 5 monthly mean NDVI values (January, February, October, November and December), which were obtained from the Geospatial Data Cloud of China (http://www.gscloud.cn). In this study, we integrated distance-based site accessibility to represent the degree of anthropogenic disturbance. Site accessibility was calculated as the radius from the road network to the center point of each grid, which was divided into 1 km × 1 km squares. We assumed that the greater the distance the more difficult it would be for people to access a site; in other words, such a site would be subject to less anthropogenic disturbance. This type of indicator is often used to measure anthropogenic pressure on birds (Tavares et al. 2015). All variables were re-sampled to the same spatial resolution (30 arcseconds) and grid cells.

Removing spatial autocorrelation

An assortment of spatial autocorrelation data is combined with ecological and environmental data when values are similar to those nearby (Augustin et al. 1996). Such spatial dependence data may lead to errors during modeling (Moriguchi et al. 2013). To remove spatial autocorrelation data, we randomly selected 1000 grid points throughout the geographical range, and calculated the Spearman's correlation (r) between each variable. We eliminated 10 variables with r > 0.75, which were considered to be significantly correlated (Dormann et al. 2013). These statistical analyses were carried out using R 3.2.3 (R Development Core Team 2011).

Species distribution model

We chose the maximum entropy modeling method (Maxent version 3.3.3 k, Phillips et al. 2006) to predict the potential Swan Goose distribution using presence-only data. The maximum entropy modeling method has been widely used in species distribution prediction studies, and it is broadly considered the most robust and accurate approach (Elith et al. 2006; Hernandez et al. 2006). According to our program settings, 75% of occurrence data were randomly selected to compute 20 replicates for model training, and the remaining 25% of occurrence data were used for model testing.

We evaluated modeling results with receiver operating characteristic (ROC) curves which calculate the area under the curve (AUC). Following random prediction, the AUC value ranged from 0.5 (random accuracy) to 1.0 (perfect discrimination) (Fielding and Bell 1997). An AUC value greater than 0.75 was considered a creditable prediction (Pearce and Ferrier 2000; Elith 2002).

Results

After spatial autocorrelation analysis, we eliminated 7 bioclimate variables and 3 environmental variables which were considered to be significantly correlated to other variables. The eliminated variables were as follow: annual mean temperature (Bio1), temperature annual range (Bio7), mean temperature of driest quarter (Bio9), mean temperature of coldest quarter (Bio11), annual precipitation (Bio12), precipitation of driest quarter (Bio17), precipitation of coldest quarter (Bio19), NDVI of January (NDVI01), NDVI of November (NDVI11) and NDVI of December (NDVI12). Results from our analysis are shown in Tables 1 and 2, and more detailed information is provided in the Spearman's correlation matrix in Additional file 2.

Table  1.  Matrix of bioclimate variable correlations

	Bio1	Bio7	Bio9	Bio11	Bio12	Bio17	Bio19
Bio2	‒0.02	0.53	‒0.2	‒0.16	‒0.26	‒0.36	‒0.25
Bio3	0.17	‒0.28	0.18	0.31	0.25	‒0.18	0.06
Bio4	‒0.34	0.95	‒0.51	‒0.63	‒0.71	‒0.34	‒0.52
Bio6	0.89	‒0.62	0.86	0.99	0.6	0.49	0.64
Bio14	0.39	‒0.38	0.56	0.5	0.78	0.97	0.91
Bio15	‒0.16	0.17	‒0.22	‒0.19	‒0.27	‒0.63	‒0.42
Variables with r > 0.75 are considered significantly correlated, and values in italics represent a high correlation between variables

 | Show Table

DownLoad: CSV

Table  2.  Matrix of environmental vegetation variable correlations

	NDVI 01	NDVI 02	NDVI 10	NDVI 11	NDVI 12
NDVI 01	1	0.9	0.8	0.91	0.96
NDVI 02	0.9	1	0.66	0.76	0.86
NDVI 10	0.8	0.66	1	0.9	0.83
NDVI 11	0.91	0.76	0.9	1	0.94
NDVI 12	0.96	0.86	0.83	0.94	1
Variables with r > 0.75 are considered significantly correlated

 | Show Table

DownLoad: CSV

Based on model prediction results, the prospective Swan Goose wintering distribution areas were mainly located in the middle and lower Yangtze River floodplain. The degree of Swan Goose wintering habitat suitability ranged from 0 (blue color) to 1 (red color) (Fig. 2).

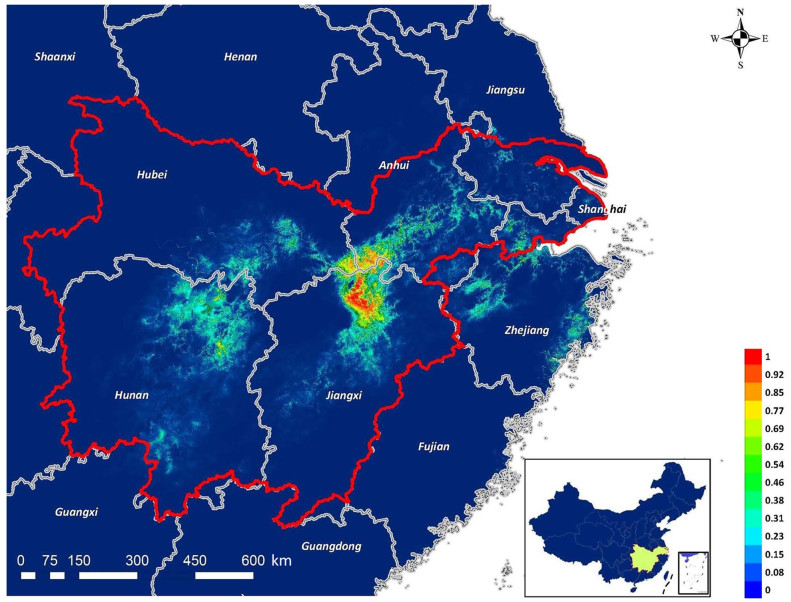

Figure  2.  The potential wintering distribution map of Swan Goose populations in China. Potential probability distribution is shown from high (red) to low (blue). The red line represents the boundary of the middle and lower Yangtze River floodplain

DownLoad: Full-Size Img PowerPoint

We derived the ROC curves and AUC value of wintering Swan Goose from the Maxent model. Our results showed an AUC value of 0.982, which represented a high level of reliability in the Maxent model.

After eliminating highly autocorrelated variables, among a total of 11 variable layers, we used climate, land structure, vegetation, and anthropogenic influence to predict wintering habitat suitability. The most important variables in descending order were elevation (30.9%), precipitation of driest month (21.6%), isothermality (16.5%), and the vegetation biomass (NDVI) in October (11.9%) (Table 3).

Table  3.  Rank in importance of environmental variables (ranked from top to bottom)

Variables	Description	Contribution (%)
Elevation	Elevation from sea level (m)	30.9
Bio14	Precipitation of driest month (mm)	21.6
Bio3	Isothermality: (Mean diurnal range/Temperature annual range) × 100	16.5
NDVI10	NDVI in October	11.9
Accessibility	Distance from the road network to the center point of each grid	3.9
Slope	Slope of geological formation (%)	3.8
NDVI02	NDVI in February	3.2
Bio15	Precipitation seasonality (coefficient of variation)	2.9
Bio6	Minimum temperature of coldest month (℃)	2.7
Bio4	Temperature seasonality	1.4
Bio2	Mean diurnal range: monthly mean (℃)	1.2

 | Show Table

DownLoad: CSV

The response curves of the four most important variables are provided in Fig. 3. Suitable habitats for wintering Swan Goose were plain areas with an elevation ranging from 0 to 500 m and winter precipitation ranging from 40 to 50 mm. The predicted distribution of wintering Swan Goose was positively correlated to isothermality. The potential suitability of isothermality increased with an initial increase in the ratio, and reached a maximum at approximately 23%. Based on NDVI results, vegetation cover was not linearly correlated to the occurrence of wintering Swan Goose; however, this occurrence potentially reached its peak with a NDVI value of approximately 0.15.

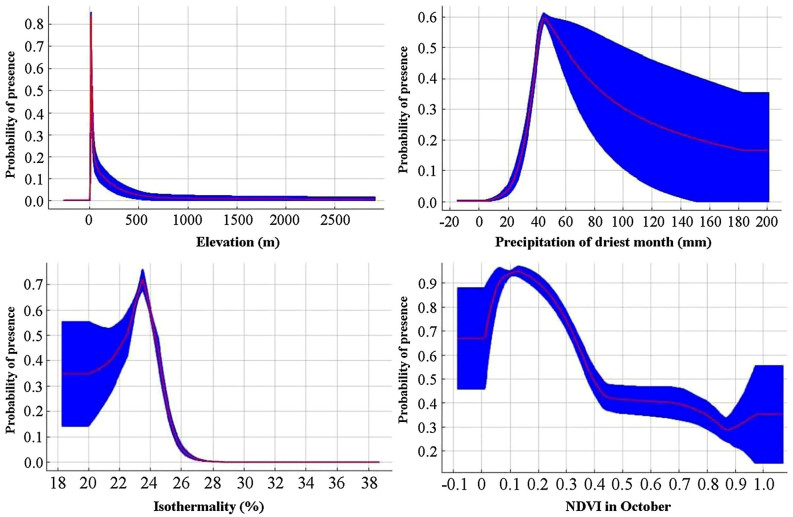

Figure  3.  Response curves of environmental variables with the highest potential occurrence of Swan Goose. Red lines are the mean response curves and blue areas represent confidence intervals with ± 1 standard deviations (SD)

DownLoad: Full-Size Img PowerPoint

To summarize, based on our model prediction results, suitable habitats for wintering Swan Geese were highly concentrated in the boundary area of Anhui, Hubei, and Jiangxi provinces, especially along the Yangtze River. Moreover, among areas located in the middle and lower Yangtze River floodplain, such as in Hunan and Hubei provinces as well as the eastern coastal area of Zhejiang Province, they showed a "medium" potential level of suitability for wintering Swan Geese.

Discussion

In the Maxent model, areas under the ROC curve (AUC) greater than 0.75 are considered useful in the prediction of environmentally suitable niches for Animalia (Phillips and Dudik 2008). Our model, with an applicable AUC value of 0.982, successfully predicted the wintering distribution of Swan Goose populations in South and East China. The potential distribution map highlighted the fact that the occurrence of wintering Swan Goose predominates in Jiangxi Province, mainly around Poyang Lake. This was followed by Dongting Lake in Hunan Province, the southern region of Hubei Province, and the Yangtze River floodplain in Anhui Province, all of which showed a medium potential. The coastal region of Zhejiang Province also showed sufficient potential of the wintering distribution of Swan Goose populations.

Land structure, climate, and anthropogenic disturbance variables are typically recognized as those that strongly influence bird distribution (Zhang et al. 2012). In our results, the most important environmental variables affecting the prospective distribution of Swan Goose were elevation, precipitation of driest month, isothermality, and vegetation biomass in October. Many previous studies have shown that Swan Goose is a herbivorous waterbird species, grazing on recessional grasslands and lakes for submerged tubers (Fox et al. 2008; Zhang et al. 2015a, b). It is commonly believed that grazing wildfowl are sensitive to forage quantity and quality (Ydenberg and Prins 1981; Sutherland and Allport 1994; Cromsigt et al. 2009; Heuermann et al. 2011). Thus, we assumed that vegetation-based variables may play a key role in model prediction.

In our modeling results, however, elevation as a land structure variable proved to be the most important variable in our prediction model. We attributed this fact to the extensive area chosen for our study. In our intent to ascertain the greatest possible prospective potential of Swan Goose wintering area, the cumulative area selected for study included the entire middle and lower Yangtze River floodplain, which includes a total of six provinces. Such a vast territory may, for example, limit the influences of smaller scale vegetation variables. Consequently, variables related to geological land structure, such as elevation, may appear to have a greater contribution during model computing processes than they actually do. Furthermore, we did not consider our results in opposition to those derived from traditional theories between waterfowl distribution and food resource abundance. This is because our results showed that wintering Swan Geese prefer lower wetlands, which are typically warmer and may subsequently provide a variety of food resources compared to higher land elevations. Additionally, following elevation, climate variables, such as precipitation of driest month (Bio14) and isothermality (Bio3), also had an important influence on the prediction of Swan Goose distribution. These two variables have been investigated in many studies, demonstrating that higher precipitation and temperature may lead to increasing water levels in wetlands, which would have a negative effect on Swan Goose density due to a decrease in submerged food accessibility (Nolet et al. 2006; Zhang et al. 2015a).

NDVI has been used as a useful indicator in the analysis of grazing bird density (Zhang et al. 2015a). According to prediction results, the contribution of NDVI in October placed the fourth in modeling results behind elevation, precipitation, and isothermality. Given that NDVI detection is based on near infrared imagery, it could represent aboveground vegetation richness (Wu et al. 2014). In our study, Swan Goose food sources were often submerged in lakes or mud. NDVI values only partially identify plant cover as animal shelter; thus, this likely represents anthropogenic disturbances more than it does food abundance. It is highly reasonable to presume the abundance of plant richness in national nature reserves where anthropogenic influence is limited (Zhao et al. 2015). This could also be the reason why the contribution of NDVI variables was even better compared to anthropogenic variables in terms of accessibility, which we selected for model prediction. The occurrence of anthropogenic disturbances is often difficult to ascertain, and its degree of influences is difficult to measure. The accessibility variable was calculated using road distance as per fishnet in GIS. Longer distances could signify difficulty in human accessibility from roads to fields. Contrary to our hypothesis, however, accessibility as an anthropogenic variable did not have a strong contribution in the model prediction of Swan Goose distribution. This could be due to many factors. For example, Swan Goose flocks were always present in the middle of recession lakes, far away from areas that humans congregate. Correspondingly, roads were always far from occupied sites. In the future, direct anthropogenic influence such as the traditional autumn fishery harvest that takes place in these areas, could be integrated into the distribution model to obtain a more precise level of prediction. As for now, however, the geological database remains limited.

Swan Goose winters exclusively in China with the exception of a few vagrant individuals that winter in Japan and Korea (Kear 2005). According to several estimation studies, Poyang Lake (in Jiangxi Province) and Baidang Lake (in Anhui Province) are currently the two most important Swan Goose wintering habitat sites (Zhang et al. 2011; Jia et al. 2016; Wang et al. 2017). It is not surprising that the hotpots in our model prediction map matched survey results.

Our model fortunately found many potentially suitable Swan Goose wintering areas when environmental variables were comprehensively taken into account, such as areas of medium potential suitability in Hunan, Hubei, and Zhejiang provinces. However, actual ecosystem conditions have many uncertainties; thus, due to factors that may not have been digitalized to variables using current technology, it is reasonable to assume that differences exist between mathematically-computed results and real world conditions. For instance, over the past several years, long-term waterbird fidelity to wintering sites could be a key factor that influences wintering site selection by geese (Hestbeck et al. 1991). Other factors that may affect wintering site selection include land structure changes and interspecific competition (Zhang et al. 2015b).

Furthermore, the Maxent model highly depends on occurrence data and variable inputs. Occurrence data are typically summarized from historical survey data, but it is important to point out that the reliability of historical records may be diminished by rapid urbanization in China. For instance, Shengjin Lake, Anhui Province, was once an important wintering habitat for large Swan Goose populations, but a dramatic decline in their number has been reported in recent studies (Jia et al. 2016). For the future development of the distribution map, new satellite tracking techniques could be incorporated when sufficient sample numbers are available, not only to increase the accuracy of the occurrence site information but also to provide more information on movement patterns. Together with an increase in interdisciplinary progress, more environmental variables may be implemented at finer scale to make the prediction model more dynamic.

One of the major functions of this prediction distribution map is to forecast where wintering Swan Goose populations will occur now and into the future while offering recommendations for conservation managers to formulate better conservation measures in the protection of this species. As an important wintering and stopover area along the East Asian-Australasian Flyway, it is urgent that we improve conservation effectiveness and formulate economical and optimal conservation policies for migratory species (de Boer et al. 2011). This study provides a visual map for conservation managers to use in designing a higher-level strategy by integrating urbanization demands and sustainable development as a whole. Besides establishing nature reserves in areas of hotpots, creating buffer zones and building up ecological migration corridors between urban areas and habitats designated as having a potentially medium level of suitability should also be considered. An increase in the investment of funding for suitable wintering sites is also important to achieve effective conservation measures. For example, some developed countries provide food sources for certain vulnerable migratory species in specific areas to help them survive difficult periods (Martin et al. 2007; Klaassen et al. 2008; Shimada 2009). To achieve an optimal level of conservation for migratory species, especially for the vulnerable Swan Goose, it is critically important to increase our knowledge of migratory connectivity as well as clarify conservation problems. For example, our potential distribution map would make it easier for policymakers to invest in particular areas at specific times to aid in the recovery of Swan Goose populations. Factors including the extent of available winter habitat for conservation, the cost of land acquisition, and the rate of degradation could also be incorporated into optimal conservation strategies to establish conservation zones from which to improve the survival rate of wintering Swan Goose populations.

Conclusions

Our prospective prediction distribution map shows that Jiangxi and Anhui provinces, and Poyang Lake in particular, are irreplaceable as well as being the most suitable areas for wintering Swan Goose populations. Also, areas including the middle and lower Yangtze River floodplain, such as Hunan and Hubei provinces and the coastal area of Zhejiang province, have a potential medium level of suitability as a wintering destination for this species. Results from our study provide fundamental information for the restoration and management of Swan Goose wintering habitat. Our "visualized" prospective prediction distribution map could help in establishing optimal conservation strategies, and could consequently help to increase the number of wintering Swan Geese in China, particularly in habitats with a medium level of suitability after successful restoration takes place. When the application of efficient measures is developed through the involvement of reliable technologies, our national strategy will possess an overall higher level of ecological protection.
